Dapu Telecom - Ethernet Phy portfolio DAP8201/11

17/06/2022

The Ethernet PHY portfolio at DAPU is currently being built up. Available PHY ICs are the DAP8201M for 10Base-Te/100BASE-TX and the DAP8211R for 10Base-Te/100Base-TX/ 1000Base-T with an operating temperature range of 0°C to 70°C. According to DAPU Telecom, it is planned to extend the operating temperature range to the industrial grade -40°C to +85°C by the end of 2022. In addition, DAPU Telecom is developing products for data rates above 1Gbit.

Functions such as a power-down/sleep mode, auto-negotiation, Wake-on-LAN (WoL), automatic polarity correction, clock output for the connected MAC, simple power supply (only one VDD required) and drivers for (network) status LEDs are offered by both ICs.

Part Number MAC interface physical interface standard Operating temperature package Remark
DAP8211R RGMII Electrical interface 1000BASE-T 0℃ ~ +70℃ QFN 40-pin 5mm x 5mm Support SyncE
10BASE-Te 5mm x 5mm
100BASE-TX
DAP8201M MII/RMII Electrical interface 10BASE-Te 0℃ ~ +70℃ QFN 32-pin 5mm x 5mm
100BASE-TX 5mm x 5mm

Main Features

  • RGMII MAC interface
  • 1000BASE-T IEEE 802.3ab /100BASE-TX IEEE
  • 802.3u/10BASE-Te IEEE 802.3 Compliant, EEE(IEEE 802.3az-2010)
  • Supports SyncE
  • WoL (Wake-on-LAN)
  • Sleep Mode
  • Crossover Detection & Auto-Correction
  • Supports Parallel Detection
  • Supports Base Line Wander Correction
  • Supports Interrupt function
  • Automatic polarity correction
  • Integrate Linear/Buck Switching Regulator
  • 120 meters at 1000Mbps over CAT.5E cable
  • Configurable I/O voltage (3.3 V, 2.5 V, 1.8 V) signaling for RGMII
Documents Tech question

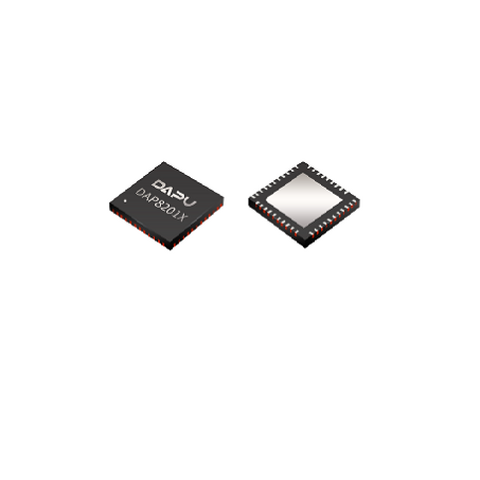

Dapu DAP8201
