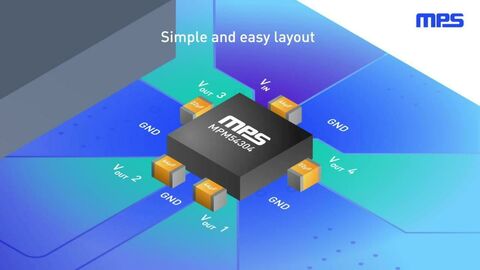

Ultra-Compact Quad-Output Power Module: MPM54304

04/10/2024

Discover the MPM54304, an advanced quad-output power module from MPS that offers a compact and highly efficient solution for diverse applications.

The MPM54304 is a complete power management module that integrates four high-efficiency, step-down DC/DC converters, inductors, and a flexible logic interface. This COT control DC/DC converter provides fast transient response. Its default 1.5MHz switching frequency greatly reduces external capacitor size. The output voltage is adjustable through the I2C bus or preset by the three-time programmable MTP (multiple-time programmable) e-fuse. The power-on/off sequence is also programmable via the MTP.

Main Features

  • Wide Output Voltage
  • I2C and Configurable Parameters
  • 4V to 16V Operating Input Range
  • Channel 1 and 2: 3A Continuous Current;Channel 3 and 4: 2A Continuous Current
  • Interleaved Operation
  • Configurable, Multi-Functional GPIO Pin
