Tunneling Magnetoresistance (TMR) analog magnetometers

24/05/2024

NVE has expanded its industry-leading line of ALT-Series Tunneling Magnetoresistance (TMR) analog magnetometers with the new ALT026-10E. The new version has a 20 mT linear range, which is the widest in the Series.

ALT-Series sensors have a unique bipolar output to detect both magnetic field magnitude and polarity; the output is positive for positive magnetic fields and negative for negative magnetic fields.

Main Features

  • High sensitivity (up to 500 mV/V/mT)
  • Large signals (200 mV/V typical full-scale)
  • Flexible 0 to 10 V supply (no minimum)
  • 20 kiloohm device resistance for low power
  • High linearity (1% of full-scale)
  • Ultra-low output temperature coefficient (±0.1%/°C)
  • Up to 300 kHz bandwidth
  • –40 to 125 °C operating range
  • 2.5 x 2.5 mm DFN6 package
Documents Tech question
NVE ALT026

Tunneling Magnetoresistance (TMR) analog magnetometers

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

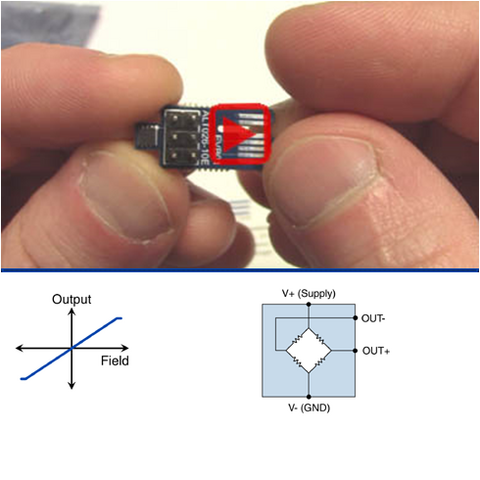

Watch the ALT026 video

Applications & Markets

  • 25 Mobile Wearables

    Mobile & Wearables

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 11 Motor Control

    Motor Control

Technologies

  • Shutterstock 755896279

    Analog, mixed signal & sensor ICs

NVE

NVE is a leader in the practical commercialization of spintronics, a nanotechnology that relies on electron spin rather than electron charge to acquire, store and transmit information.

Read more
NVE Logo

Documents

  • NVE AL Txxx 10 Datasheet
