TPC6240-QFER-S 24-Bit 8-kSPS Sigma-Delta Analog to digital converter

24/05/2024

TPC6240 precision 8-channel/16-channel, multiplexed analog-to-digital converter (ADC) with integrated PGA and many other features offer accurate measurement for low-bandwidth input signals, and lower-system cost and component count. The device has a 24-bit delta-sigma converter with configurable data rates. There are sinc5 filters for optimized noise performance and low-latency filters for fast settling with 50 Hz/60 Hz rejection for noisy industrial environments. A low-noise programmable gain amplifier provides 1 gain to 128 gain options to amplify low-level signals.

Additionally, the TPC6240 ADC integrates a precision 2.5 V band gap reference and integrated oscillator. Two programmable excitation current sources are available for easy resistance temperature detection (RTD) biasing for temperature measurement. Features such as burn-out, CRC, voltage bias, system monitoring, and GPIOs are integrated. The device is available in a QFN6X6-40 package.

Main Features

  • Integrated functions: Dual-matched programmable current sources for sensor excitation: 10 µA to 2000 µA
  • Internal reference: 2.5 V
  • Internal oscillator
  • Internal temperature sensor
  • Extended fault detection circuits
  • Self-offset and system calibration
  • GPIO and GPO pins with external mux control
  • Digital supply: 2.7 V to 5 V
  • Package: 40-lead 6 mm x 6 mm QFN
  • Operating temperature: -40°C to +125°C
Documents Tech question

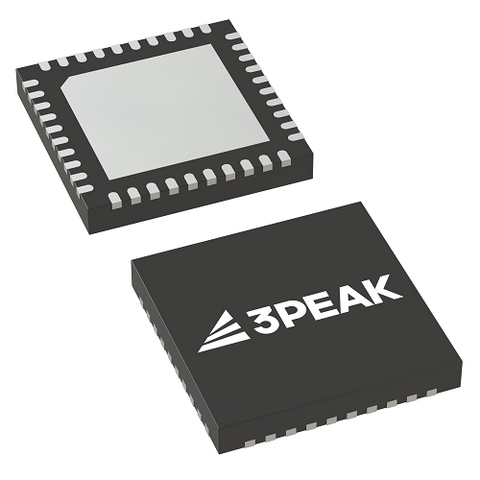

3 Peak TPC6240

TPC6240-QFER-S 24-Bit 8-kSPS Sigma-Delta Analog to digital converter

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

Technologies

  • Shutterstock 755896279

    Analog, mixed signal & sensor ICs

3Peak

3PEAK is committed to the research and development of high-performance, high-quality, and highly reliable integrated circuit products, including signal chains, power analog chips, mixed-signal front-ends, and embedded processors to provide customers with all-around solutions.

Read more
3peak Logo

Documents

  • 3 Peak Datasheet TPC6240
