Switching charger with USB On-the-Go for single cell Li-ion, Li-polymer, and LiFePO4 batteries

21/05/2021

The MP2733 is an I2C-controlled, narrow voltage DC (NVDC) Switching charger with USB On-the-Go (OTG) and integrated ADC for single cell Li-ion, Li-polymer, and LiFePO4 batteries. It supports 5V to 15V USB PD inputs, provides a 320mA to 4520mA programmable fast charhe current, and offers USB OTG with a 4.8V to 5.5V adjustable output. The device has robust protection features, including configurable JEITA for battery temp protection in charge mode, a battery charging safety timer, thermal regulation and shutdown, I2C watchdog monitoring, and input/system OVP. It provides BATTFET disable control to enter shipping mode, as well as system reset functionality via the DISC pin. The MP2733 is available in a QFN-26 (3.5mm x 3.5mm) package, and is ideal for applications such as smartphones, point-of-sale (POS) machines, wireless cameras, wireless speakers, and other portable devices.

Documents Tech question

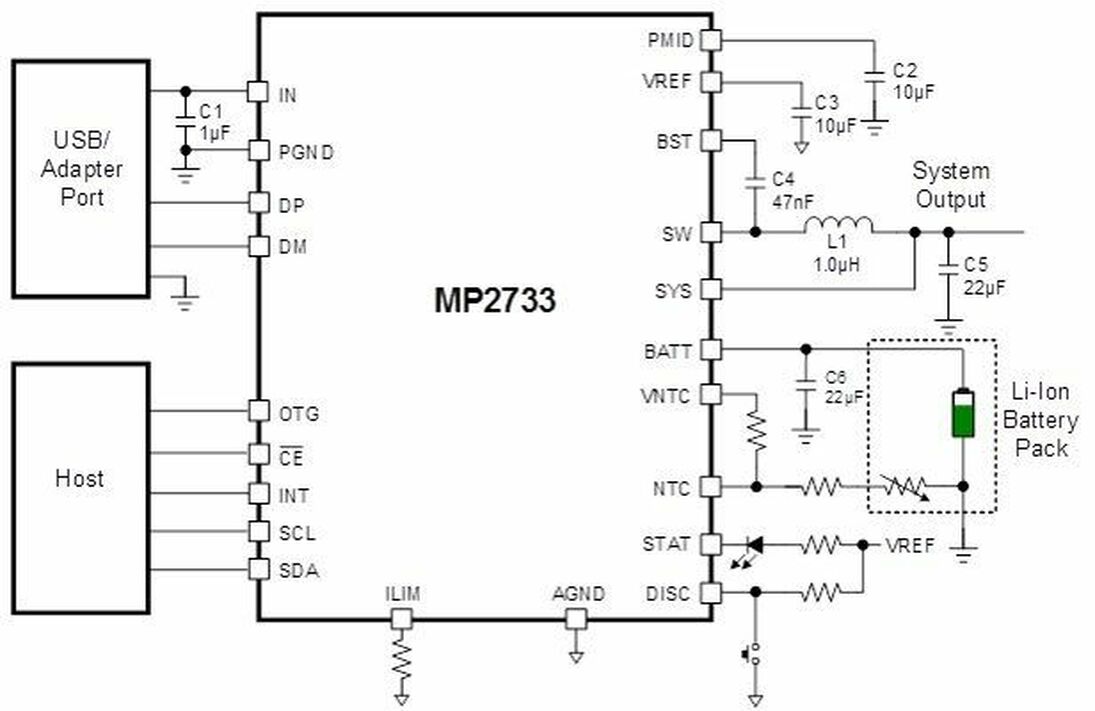

Mp2733 tac

Switching charger with USB On-the-Go for single cell Li-ion, Li-polymer, and LiFePO4 batteries

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

Features & Benefits

  • 3.7V to 16V Operating Input Voltage Range
  • Up to 22V Sustainable Voltage
  • High-Efficiency, 4.5A, 1.35MHz Buck Charger with Up to 92% Charge Efficiency with 3A Charge Current:
  • Configurable D+/D- for Flexible Fast Charge Protocol Support
  • USB OTG with 4.8V to 5.5V Adjustable Output: Up to 3A Output, Up to 93% Efficiency with 1.5A Output
  • NVDC Power Path Management:
  • Instant-On Works with No Battery or Deeply Discharged Battery;
  • Ideal Diode Operation in Battery Supplement Mode
  • High Battery Discharge Efficiency with 14mΩ BATTFET Up to 8.5A
  • I2C Interface for Flexible System Parameter Setting and Status Reporting
  • Fully Integrated MOSFETs, Current Sensing
  • Dedicated DISC Pin to Control Shipping Mode and System Reset
  • 13μA Low Battery Leakage Current in Shipping Mode
  • Integrated ADC Monitors Input Voltage and Current, Battery Voltage, Charge Current, System Voltage, and Battery Temperature
  • Charging Status Indicator
  • Safety Features: Configurable JEITA for Battery Temp Protection in Charge Mode, Battery Charging Safety Timer, Thermal Regulation and Shutdown, Watchdog Monitoring I2C, and Input/System OVP
  • Available in a QFN-26 (3.5mmx3.5mm) Package

Applications & Markets

  • 25 Mobile Wearables

    Mobile & Wearables

  • 16 Kiosk POS Digital Signage

    Kiosk, POS & Digital Signage

  • 6 Wireless Communication

    RF & Wireless communication

Technologies

  • Shutterstock 1681440739

    Power management ICs

Monolithic Power Systems

Monolithic Power Systems provides small, highly energy efficient, easy-to-use power solutions for systems found in industrial applications, telecom infrastructures, cloud computing, automotive, and consumer applications.

Read more
Monolithic Power Systems Logo

Documents

  • MP2733 GQC
