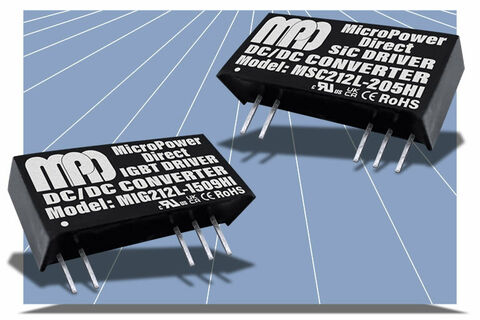

Series High Isolation, Wide Gap, IGBT/SiC Driver DC/DC Converters

03/02/2023

Two new series of very high isolation DC/DC’s designed for use in high speed gate drive circuits. The MIG200lhi (for igbt circuits) and MSC200lhi (for sic circuits) feature an i/o isolation of 5kv and an electrical clearance/creepage distance of 14.74 mm. For most devices now on the market, the i/o isolation is 3kv and the creepage distance is about 8 mm. The wider gap allows these units to maintain a continuous barrier withstand voltage of 1,700v even when the unit is damaged.

The MIG200lhi series consists of three models with inputs of 12, 15 or 24 vdc and outputs of +15v/-9v. The MSC200lhi series has six models with inputs of 12, 15 or 24 vdc and outputs of +15v/-4v or +20v/-5v. Standard features for all models include 5,000 vac i/o isolation (reinforced), continuous short circuit protection, up to 87% efficiency, and a low isolation capacitance of only 3.5 pf. The mtbf (per mil hdbk 217f) is greater than 3.5 mhours. All models are approved to en 62368 (ul).

Main Features

  • >+14.14 mm Safety Distance
  • 5,000 VAC Isolation
  • EN 62368 Approved (UL)
  • Up to 87% Efficiency
  • -40 °C to +105°C Operation
  • Short Circuit Protection
  • Reinforced Insulation
  • 12, 15 or 24 VDC Inputs
  • Ultra-Low Isolation Capacitence
Documents Tech question
MPD MSC200 LHI MIG200 LHI

Series High Isolation, Wide Gap, IGBT/SiC Driver DC/DC Converters

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • Shutterstock 403226329 Converted

    Power conversion

Technologies

  • Shutterstock 2049802019 Converted

    DC/DC converters

MPD

MicroPower Direct ( MPD ) growth is driven by a commitment to delivering innovative, high quality power conversion products at the lowest possible prices.

Read more
MPD Logo

Documents

  • MPD MSC200 LHI Datasheet
  • MPD MIG200 LHI Datasheet
