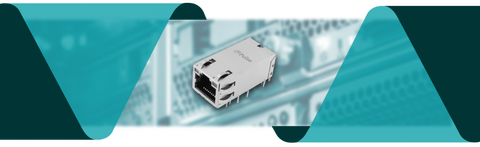

Ruggedized industrial 10G Ethernet ICM for 5G/LTE mobile

05/11/2021

PulsejackTM, integrated connector modules (ICMs) are ideal for use in the latest LTE and 5G Mobile Wireless Access Points (WAPs) and other Industrial and outdoor uses. These new additions expand, and complement, our current commercial grade 10Gigabit products allowing wider operating temperature requirements of -40 to +85°C and the added provision of high power PoE+ up to 140W or 90W per IEEE802.3bt , depending on selected option.

All our PulseJack™ designs provide a “one-component” solution to a discrete design and offer superior EMC; as all the magnetic portion is confined within the shield of the RJ45 connector. The large cavity allows for higher PoE currents, up to 1.3A, to be supported internally without overheating when running under high load. The shield has top and bottom EMI fingers and extra grounding tags for improved EMI and the front LED, rear signal and mid-section PoE pins maintain sufficient separation to ease EMC and PCB power/signal/ground routing issues.

Main Features

  • 10G Ethernet over UTP surpassing IEEE802.3an
  • Supports 4 pair PoE power rating from 90W up to 140W
  • Bi-Colour LEDs for indicating operating mode
  • Rugged Design for industrial and outdoor use
  • Single component solution with excellent EMC
  • Individual CT Pins for flexible Phy connections
