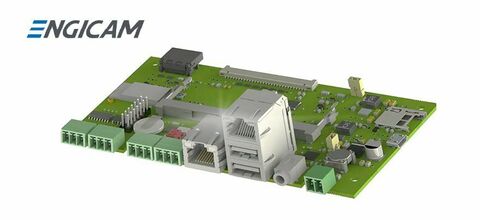

New Carrier Board C.TOUCH 3.0

29/09/2023

Engicam announced a preview of the release of the new C.TOUCH 3.0 carrier board, a versatile platform with a capacitive touch interface, compliant with the EDIMM 2.0 standard.

C.TOUCH 3.0 supports the i.Core MX8, i.Core STM32MP15 and the new i.Core MX93 and i.Core AM62x SOMs, and supports Linux and Android operating systems for maximum software design and development flexibility.

The C.TOUCH 3.0 board is designed for embedded systems and industrial applications, automation, transportation, robotics, medical devices, video surveillance, and more.

Main Features

  • Video interface
  • 1x LCD connector: up to 24 bit single channel LVDS• Capacitive touch panel via USB or I2C
  • 1x PWM for backlight control
  • Power supply for LCD (+3,3V, +5V, +12V)
    - 1x HDMI standard connector (not supported on all SOMs)
    - 2nd LVDS channel displays (option)
  • Networking: 2x 10/100/1000 Ethernet Interfaces, WiFi+ BT
  • Audio: HP Output Jack
  • USB: USB OTG device (Micro USB B Type), 2 x USB Host
  • Power supply: +7 - 30 VDC
Documents Tech question
