Industry's highest-performing multi-network 5G routers

21/05/2021

The new AirLink XR series delivers the fastest speeds on the best performing networks, even in the most challenging environments.

The first two routers in the XR Series, the AirLink XR90 and XR80, enable you to leverage the higher data speeds, lower latency, ultra-reliability and enhanced security of 5G, required for real-time video streaming and voice communications in mission-critical environments and high performance business-critical 5G applications.

The XR90 is purpose-built for vehicles, such as transit and public safety
The XR80 is purpose-built for mobile and fixed applications such as commercial fleets, manufacturing, and distance learning.

The XR series offers a complete solution including device-to-cloud security and remote management capabilities so you can be confident that your devices are always operating at top performance.

Main Features

AIRLINK XR80

Cellular Connectivity Supported : 5G – Up to 4.14 Gbps DL/660 Mbps UL, 4G LTE-A Pro CAT20 – Up to 2 Gbps DL/210 Mbps UL Optional dual 5G cellular, LPWA exclusively for ALMS Out-of-Band Management

Navigation: Assisted GNSS with inertial dead reckoning and integrated vehicle telemetry via ODBII/CAN

Wi-Fi :4x4 MIMO Wi-Fi 6 AP/STA up to 2.4Gbps, 1x1 MIMO Wi-Fi 6 STA, Support for 128 clients and WPA2/3Enterprise High output power 21 dBm (per chain), Non-Wi-Fi model available

Host Interfaces : All WAN/LAN interfaces use Sierra Cognitive Wireless and Data Path Acceleration Architecture, Single 5G: 3x RJ-45 Ethernet ports (1x 5Gbps with PTP IEEE 1588, 2x 1Gbps), Dual 5G: 4x RJ-45 Ethernet ports (1x 5Gbpswith PTP IEEE 1588, 4x 1Gbps), Dual SIM Slots. Dual RS-232 serial on RJ-45, Aux Port (GPIO/CAN), USB 3.2 type-C port, Bluetooth (future support)

Security: All Sierra Wireless security features including secure boot and secure firmware update AAA: 802.1x/Radius authentication, Stateful firewall with port forwarding and DMZ, WPA2/3 Personal/Enterprise WLAN Encryption and FIPS 140-2

Construction: Aluminum die cast housing rated to IP64 and Mil-STD 810G

Industry Certifications: Safety: IECEE Certification Bodies Scheme (CB Scheme), UL 60950, Vehicle Usage: E-Mark (72/245/EEC, 2009/19/EC), ISO7637-2, SAE J1455 (Shock & Vibration)Environmental: RoHS2, REACH, WEEE, Rail Usage: EN50155 (Rolling Stock)

Dimensions: Single 5G: 170mm x 220mm x 53mm (6.69in x 8.66in x 2.08in)Dual 5G: 220mm x 220mm x 53mm (8.66in x 8.66in x 2.08in)

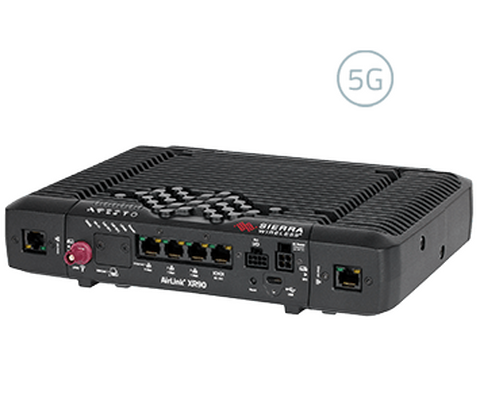

AIRLINK XR90

Cellular Connectivity Supported :5G – Up to 4.14 Gbps DL/660 Mbps UL, 4G LTE-A Pro CAT20 – Up to 2 Gbps DL/210 Mbps UL Optional dual 5G cellular, LPWA exclusively for ALMS Out-of-Band Management

Navigation: Assisted GNSS with inertial dead reckoning and integrated vehicle telemetry via ODBII/CAN

Wi-Fi: Dual independent 4x4 MIMO Wi-Fi 6 AP/STA up to 2.4Gbps Support for 128 clients and WPA2/3 Enterprise
High output power 21 dBm (per chain)

Host Interfaces: All WAN/LAN interfaces use Sierra Cognitive Wireless and Data Path Acceleration Architecture Single 5G: 4x RJ-45 Ethernet ports (1x 5Gbps, 3x 1Gbps), Dual 5G: 5x RJ-45 Ethernet ports (1x 5Gbps, 4x 1Gbps), Dual SIM Slots. Dual RS-232 serial on RJ-45, Aux Port (GPIO/CAN), USB 3.2 type-C port, Bluetooth (future support)

Security: All Sierra Wireless security features including secure boot and secure firmware update AAA: 802.1x/Radius authentication, Stateful firewall with port forwarding and DMZ, WPA2/3 Personal/Enterprise WLAN Encryption and FIPS 140-2 (future support)

Construction: Aluminum die cast housing rated to IP64 and Mil-STD 810G

Certifications: Safety: IECEE Certification Bodies Scheme (CB Scheme), UL 60950
Vehicle Usage: E-Mark (72/245/EEC, 2009/19/EC), ISO7637-2, SAE J1455 (Shock & Vibration)Environmental: RoHS2, REACH, WEEE, Rail Usage: EN50155 (Rolling Stock)
