HT32F61141 Smart Card Reader 32-bit MCU

03/02/2023

New generation Arm® Cortex®-M0+ Smart Card Reader MCU, the HT32F61141. This device includes functions such as a high operating speed of 48MHz and an operating voltage range of 2.5V~5.5V. The device operates with an industrial temperature range of -40°C~85°C and also includes two SCI interfaces which can support up to three cards and conforms to the ISO7816-3 standard. This range of comprehensive functions make this new MCU an excellent choice for various contact smart card readers.

The HT32F61141 device contains a 64KB Flash Program Memory, 16KB SRAM of Data Memory, a USB 2.0 Full-Speed interface, two SCI interfaces, LDO, RTC and multiple timers. It also contains multiple additional flexible peripheral interface types, such as I²C, SPI and UART. The integrated LDO can output 1.8V, 3V and 5V voltages, which can provide power for the SCI0 interface and the external card chip. The interface conforms to the ISO7816-3 standard. With regards to packaging, it is supplied in 32-pin QFN, 46-pin QFN and 48-pin LQFP package types.

Main Features

Core

  • 32-bit Arm® Cortex®-M0+ processor core
  • Up to 48 MHz operating frequency
  • Single-cycle multiplication
  • Integrated Nested Vectored Interrupt Controller (NVIC)
  • 24-bit SysTick timer

On-Chip Memory

  • 64 KB on-chip Flash memory for instruction/data and option storage
  • 16 KB on-chip SRAM
  • Supports multiple booting modes

Flash Memory Controller – FMC

  • Flash accelerator for maximum efficiency
  • 32-bit word programming with In System Programming Interface (ISP) and In Application Programming (IAP)
  • Flash protection capability to prevent illegal access
Documents Tech question

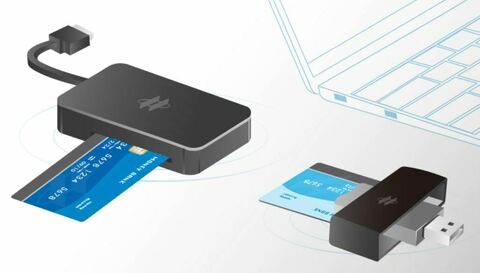

Holtek HT32 F61141 smart card reader

HT32F61141 Smart Card Reader 32-bit MCU

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 16 Kiosk POS Digital Signage

    Kiosk, POS & Digital Signage

Technologies

  • Shutterstock 1632356350

    Microcontroller, microprocessors & memory ICs

Holtek

Holtek Semiconductor is a leading professional IC design house in Taiwan having its major business activities focused in the area of microcontroller and peripheral component design.

Read more
Holtek semiconductor logo web

Documents

  • Holtek HT32 F61141 Datasheet
