Block unwanted EMI Signals from your shielded facility

09/12/2022

The F-series of Facility/Shielded Room EMI Filters include current ratings from 20 A to 2500 A, with operating voltages between 277/480 VAC and 345/600 VAC, to support a variety of applications. The F Series filter designs are agency approved and comply with the requirements of MIL-PRF-15733 and MIL-STD-810.

Main Features

  • Attenuation (insertion loss) is 100dB @14KHz to 10GHz measured in accordance with MILSTD-220
  • Filter cabinets supplied with two separate removable covers to access input and output terminals
  • Filter insertion loss will extend to 40 GHz when installed with proper EMI shielding and isolation
  • Designed to meet MIL-PRF-15733 and MILSTD-810
  • Safety approved to UL 1283, and CSA C22.2 #8-13
  • Bleeder resistors are built into each filter line to discharge the capacitor voltage to ground potential during power shutdown
  • Designed to operate continuously at rated currents and voltages, and are capable of withstanding a 40% currentoverload for 15 minutes without degradation
  • <1% voltage drop across each filter line at room temperature and full rated current
Documents Tech question

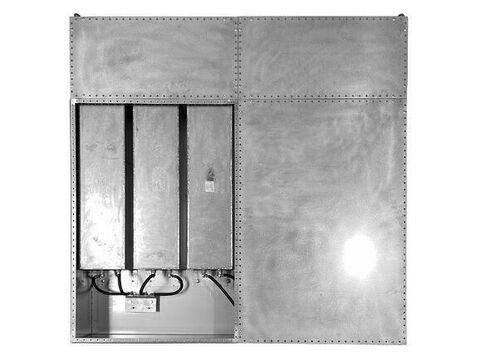

ATDI F Series

Block unwanted EMI Signals from your shielded facility

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 27 White Goods Home Appliances

    White Goods & Home Appliances

  • 23 E mobility

    E-Mobility

  • 11 Motor Control

    Motor Control

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

Technologies

  • Shutterstock 2035174493

    EMC/EMI/RFI filters

Astrodyne TDI

Astrodyne TDI designs and manufactures Power Supplies and EMI Filters for a variety of markets, including Aerospace, Industrial, Medical, Military and Semiconductor Manufacturing.

Read more
Astrodyne Logo

Documents

  • ATDI Shielded Room Product Brochure
  • ATDI F Datasheet
  • ATDI F Datasheet Single
