8-in-1 Combination Antenna – GNSS, 4x5G/4G Cellular and 3xWi-Fi

28/05/2021

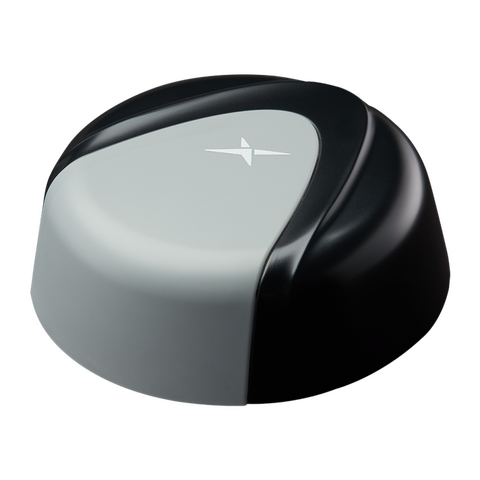

The Taoglas Synergy MA1508 is a 8-in-1 next-generation permanent mount antenna for vehicle roof applications. It has a fully IP67 rated waterproof robust PC enclosure and base. The 9 antennas inside support 5G/4G, GPS/GLONASS/BeiDou, Wi-Fi (2.4GHz/5GHz). This outstanding patent-pending antenna delivers powerful MIMO antenna technology for 5G/4G, Wi-Fi 2.4/5.8GHz 802.11n and the emerging 802.11ac, and an optimized GPS/GLONASS/BeiDou patch antenna for location. The 5G/4G antennas also include backward compatibility to work at most worldwide 2G and 3G bands. With 5m Braided Cable Assembly.

The MA1508 is ideal for applications that require highly sophisticated antennas for real-time streaming applications that demand high-speed video uplink and downlink into the cabin of the vehicle. These challenges are resolved by the highly efficient, high gain MIMO antennas, with high isolation, all of which is necessary to achieve the required signal to noise ratio and throughput.

Main Features

Features:

  • 4 x 5G/4G(600MHz-6GHz) MIMO Antenna
  • 3 x Wi-Fi 2.4GHz/5GHz MIMO Antenna
  • 1 x GPS/GLONASS/BeiDou Antenna Front End GNSS SAW Filter
  • IP67 Rated Waterproof
  • High Efficiency/Peak Gain Outdoor Antenna
  • Dimensions: Ø161*55mm
  • Cable: 300mm RG-174LL with 4700mm TGC-200
  • Connectors: SMA(M) / RP-SMA(M)
  • RoHS & REACH Compliant
Documents Tech question
Taoglas MA1508 AK

8-in-1 Combination Antenna – GNSS, 4x5G/4G Cellular and 3xWi-Fi

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 12 Security Surveillance

    Security & Surveillance

  • 18 Traffic Transportation

    Traffic & Transportation

Technologies

  • Shutterstock 1226404321

    Antennas

Taoglas

Taoglas is the world’s leading provider of next-generation IoT solutions, combining the latest in high-performance RF antenna with advanced positioning, imaging, audio and artificial intelligence technologies for companies with unique IoT challenges.

Read more
Taoglas Logo

Documents

  • Taoglas synergy 8 in 1 antenna MA1508 AK 001
