680W horticulture lighting offers simple installation and reliable performance

17/09/2021

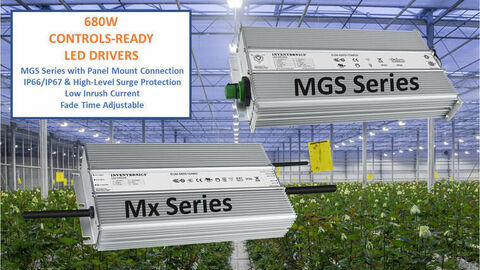

Inventronics expands their high-power, 680W LED drivers and introduces new models that provide even simpler installation for new facilities or retrofit and lower installation costs. These drivers deliver Controls-Ready features, programmability, an optimized thermal design and a reliable, superior performance.

The EUM-680SxxxMx and MGS series are designed with noteworthy built-in protection ideal for the more robust application conditions typically found in horticulture, stadium and high mast applications.

Main Features

Panel mount connectors facilitates installation
Brackets accommodates variety of hanging applications
Ultra High Efficiency (Up to 96.0%)
Full Power at Wide Output Current Range (Constant Power)
Adjustable Output Current (AOC)with Programmability
Isolated 0-10V/PWM/3-Timer-Modes Dimmable
INV Digital Dimming, UART Based Communication Protocol
Dim-to-Off with Standby Power ≤ 0.5 W
Minimum Dimming Level with 5% or 10% Selectable
Maximum Dimming Level with 9V or 10V Selectable
Fade Time Adjustable
Always-on Auxiliary Power: 12Vdc, 250mA
Low inrush current
Output Lumen Compensation
End-of-Life Indicator
Input Surge Protection: DM 6kV, CM 10kV
All-Around Protection: IOVP,IUVP, OVP, SCP, OTP
IP66 / IP67 and UL Dry / Damp / Wet Location
TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
5 Years Warranty
