08/11/2024

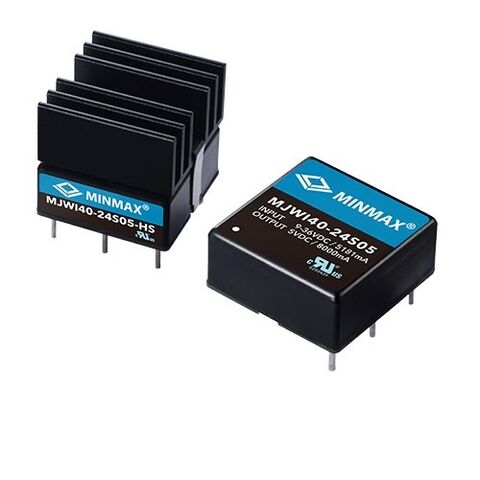

The MJWI40 series represents the smallest encapsulated 40W DC-DC isolated converters available, designed for compact, high-performance applications. With an ultra-compact 1"×1" package and an ultra-high power density of 93W/in³, these converters are optimized for efficiency and space-saving designs. They feature an ultra-wide 4:1 input voltage range, fully regulated output voltage, and deliver up to 93% efficiency. The series also offers I/O isolation rated at 1500 VDC and operates in extreme temperatures from -40℃ to +85℃ without a minimum load requirement.
Additional features include low no-load power consumption, comprehensive protections (under-voltage, overload, temperature, and short circuit), and convenient remote On/Off control with output voltage trim. For enhanced thermal management, the MJWI40 series also provides an optional heatsink, ensuring optimal heat dissipation and stable performance in more demanding environments. Housed in a shielded metal case with an insulated baseplate, the MJWI40 series meets UL/cUL/IEC/EN 62368-1 safety standards and bears CE marking.
