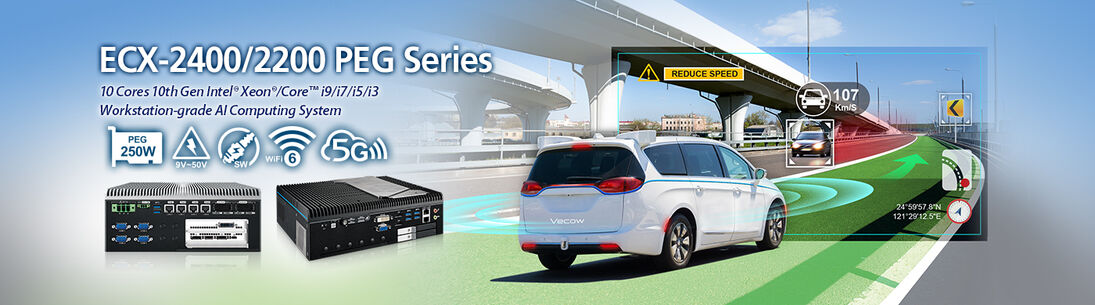

10th gen. INTEL XEON/CORE workstation-grade AI computing systems

27/11/2020

Powered by 10-core 10th generation Intel® Xeon®/Core™ i9/i7/i5/i3 processor (Comet Lake), Vecow ECX-2400/2300 PEG integrated with independent NVIDIA® Tesla®/Quadro®/GeForce® graphics card and supported advanced NVIDIA® CUDA® cores, delivering leading AI computing productivity. It features up to 6 GigE LAN with 4 PoE+, multiple USB 3.2 connections providing up to 10Gbps data transfer rate, and max 7 independent display up to 8K resolution. With smart manageability and industrial-grade reliability, Vecow ECX-2400/2300 PEG AI Computing System is ideal for Robotic Control, Traffic Vision, Public Surveillance and In-vehicle Computing applications.

Documents Tech question
6769

10th gen. INTEL XEON/CORE workstation-grade AI computing systems

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents
  • Workstation-grade Platform : 10-core 10th Gen Intel® Xeon®/Core™ i9/i7/i5/i3 Processor (CML-S) running with Intel® W480E chipset supports max 95W TDP CPU
  • Supports up to 250W NVIDIA® or AMD Graphics card
  • NVIDIA® Tesla®/Quadro®/GeForce® graphics card delivers leading AI computing productivity by advanced NVIDIA® CUDA® cores
  • 12V to 50V wide range DC Power Input with 80V Surge Protection
  • 6 Independent GigE LAN with 4 IEEE 802.3at PoE+
  • 6-port USB 3.2 support up to 10Gbps data transfer
  • Storage : 4 2.5″ SSD Tray, 1 Micro SD Card, 1 M.2 Key M, 4 SATA III
  • Expansion : 2 PCIe, 1 M.2 Key B, 1 M.2 Key E, 2 Mini PCIe
  • Multiple VGA, DVI, HDMI and DisplayPort display interfaces support max 7 independent displays, up to 8K Resolution
  • 32 Isolated DIO, 4 COM RS-232/422/485
  • 3 External Nano SIM Sockets for 5G/WiFi 6/4G/3G/LTE/GPRS/UMTS
  • Supports Configurable Software Ignition Power Control and TPM 2.0
  • Optimized user-friendly design for easier system maintenance
  • Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
