Vehicle Telematics Gateway

28/10/2022

Tracking anything, anytime, anywhere.

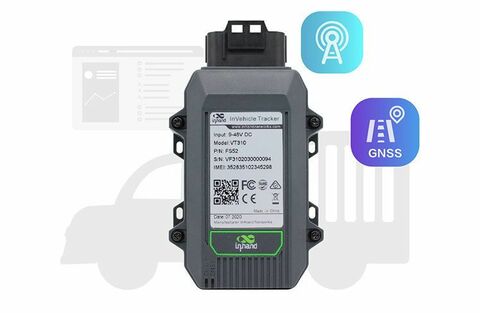

The VT300 is a series of rugged and functionally capable vehicle telematics gateway. Integrating extensive interfaces, multiple diagnostic protocols and major IoT clouds, it delivers reliable vehicle data in some of the most challenging environments that involve severe cold or scorching heat, and/or water immersion, while remaining budget friendly.

The VT300 has everything you want from a vehicle telematics device: reliable LTE CAT M1/ LTE CAT1/ CAT4 connectivity for vehicles and their peripherals; built-in GNSS module and inertial navigation for high-precision real-time location tracking; with the gyroscope, the VT300 enables continuous driving behavior monitoring and keeps you safe on the road.

The VT300 vehicle telematics gateway features IP67 protection rating, which protects the product from water and dust. A built-in sensor helps easily acquire ambient temperature and closely monitors the environment status.

Specifically, the embedded NiH battery in the VT320 supports a wide temperature range of -40~85℃, which sustains extreme climates.

Main Features

  • Network Type: Cat M1, Cat 1, Cat 4
  • LTE Antenna: FPC built-in antenna
  • GNSS Antenna: Ceramic built-in antenna
  • Bluetooth Antenna: Ceramic built-in antenna
  • Satellite Support: GPS/GNSS/A-GNSS
  • 31 channels
  • Sensitivity: -162 dBm,initial positioning time 32s
  • Collection Sensitivity: -156 dBm (hot start),-148 dBm (cold start)
  • Location Accuracy: 2.5m (CEP50)
  • Update Frequency: Default 1Hz, Max 10Hz
  • Low Power: Continuous operation:<15mA (@3.3V single system positioning)
Documents Tech question
Inhand VT300 series

Vehicle Telematics Gateway

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 10 Logistics

    Logistics

  • 18 Traffic Transportation

    Traffic & Transportation

Technologies

  • Shutterstock 557910970

    Industrial controls networking

Inhand

InHand Networks is a global leader of Industrial IoT.

Read more
Inhand Logo

Documents

  • Inhand In VT320 Product Spec V1 1
  • Inhand In VT310 Product Spec V1 1
