VCM-1000 Series Compact Embedded Computing System

21/07/2023

The new VCM-1000 Series is powered by 13th Gen Intel® Core™ i9/i7/i5/i3 processor. It features a 2U half-rack size design and is equipped with rich I/O interfaces, making it ideally suited for space-constrained applications in digital factories, mobile robots, public security, and any AIoT/Industry 4.0 applications.

The VCM-1000 Series is a highly optimized embedded system that supports 13th Gen Intel® Core™ i9/i7/i5/i3 processor running on the Intel® H610E PCH. Featuring up to 64GB of dual DDR5 operating at 4800MHz, the new VCM-1000 allows for fast workload capabilities and offers flexibility for IoT applications that require high-performance computing within a compact size yet more connection options.

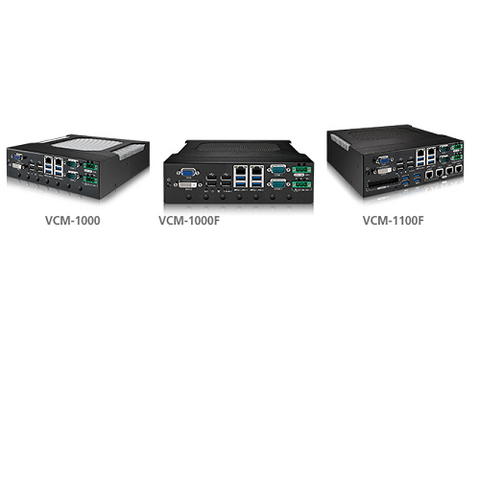

VCM-1000
13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake) Compact Embedded Computing System, 2 GigE LAN, 8 USB, DC 24V, High Performance, Fanless, Rugged, Compact, -25°C to 60°C Extended Temperature

VCM-1000F
13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake) Compact Embedded Computing System, 2 GigE LAN, 8 USB, DC 24V, High Performance, Compact, -25°C to 75°C Extended Temperature

VCM-1100F
13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake) Compact Embedded Computing System, 6 GigE LAN with 4 PoE+, 12 USB, 36 Isolated DIO, DC 24V, High Performance, Compact, -25°C to 75°C Extended Temperature

Main Features

  • 24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor running with Intel® H610E PCH
  • 2 DDR5 4800MHz SO-DIMM, up to 64GB Memory
  • 6 Independent GigE LAN with 4 IEEE 802.3at PoE+
  • 12 USB, 2 COM RS-232/422/485, 36 Isolated DIO
  • WiFi/4G/3G/LTE/GPRS/UMTS, M.2 Key E, M.2 Key B
  • Software Ignition Control, TPM 2.0, Intel® TCC
  • Compact 2U half-rack design, -25°C to 75°C wide range operating temperature
  • Optional VHub AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
Documents Tech question
Vecow VCM 1000 series

VCM-1000 Series Compact Embedded Computing System
