Updated JetPort 5601 firmware to secure and consolidate the protection of system environments

08/07/2022

The JetPort 5601 has been updated and released the firmware into JetPort5601V3_V1.2.0.

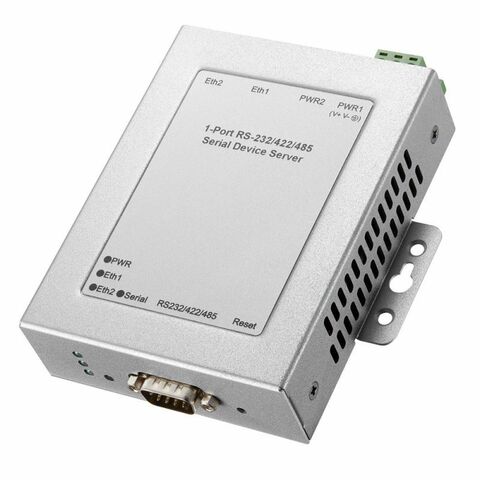

The JetPort 5601 is a RS-232/422/485 to Redundant Ethernet Serial Device Server. The serial interface is configurable in software and supports speed as fast as 921.6kbps. Dual Ethernet ports can support RTTD (Redundant to the Device) that can auto-recover in less than 200ms if the primary link breaks, as a result guaranteeing a non-stop connection.

The JetPort 5601 is also equipped with two types of power inputs, the terminal block and power jack. The JetPort 5601 can be configured by the JetPort Commander, an easy-to-use utility for Windows, that covers all management, monitoring, and control functions for one or multiple JetPort servers.

Main Features

3-in-1 RS232, RS422, RS485 to Redundant Ethernet Solution
Max. Serial Speed: 921.6 kbps
Dual Ethernet Ports for Daisy Chain or RTTD (Redundant to the Device, Auto-Recovery in less than 200ms)
Dual Power Inputs by 12-48VDC Terminal Block and 9-30V DC Jack.
Secured Management by HTTPS and SSH.
JetPort Commander, Korenix Windows Utility for Device Discovery, Multiple Device Setting and Monitoring.
Versatile Serial Modes: Real/Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP
Up to 5 Simultaneous Real/Virtual COM, TCP Server, TCP Client Connections
Event Warning by Syslog, Email, SNMP trap
Supports Windows 10/8/7/Vista/XP/2000/2003/2008
Operating Temperature: -20~70°C
