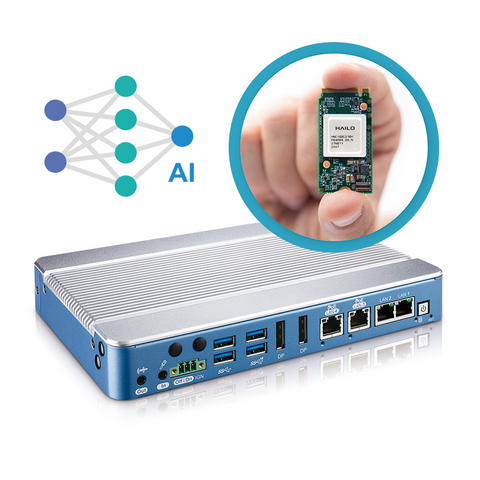

Ultra-slim fanless Edge AI Computing system

12/08/2022

ABP-3000 AI is powered by 8th Gen Intel® Core™ U-series processor delivering up to 40% greater productivity than the former generation. ABP-3000 AI features a fanless and cable-less design making it ideal for space-limited environments. Incorporating with AI accelerator to support up to 26 Tera-Operations Per Second (TOPS), ABP-3000 AI provides high-performance computing capability to fulfil the needs of AI applications. In addition, ABP-3000 AI is packed full of interfaces including dual independent DisplayPorts display up to 4K resolution, 4 port USB 3.1, 4 GigE LAN with 2 PoE+ and 4 COM port. Featuring an extended operating temperature range of 0°C to 60°C and 9V to 50V power input make APB-3000 AI a trusted solution for Machine Vision, In-vehicle Computing, ARM/AGV and Intelligent Control applications, or any Industry 4.0/AIoT applications.

Main Features

  • 8th Generation Intel® Core™ U-series processor (Whiskey Lake) supports up to 40% greater productivity than former generation
  • Ultra-slim and cableless design supports wide range temperature of 0°C to 60°C with fanless operation
  • Compact Hailo-8™ AI Accelerator supports up to 26 Tera-Operations Per Second (TOPS) with best-in-class power efficiency of 3 TOPS/W
  • 2 DDR4 2400MHz memory, up to 64GB
  • 4-port USB 3.1 support up to 10Gbps data transfer
  • 4 Independent GigE LAN with 2 IEEE 802.3at PoE+
  • SIM Socket for 5G/WiFi/4G/3G/LTE/GPRS/UMTS
  • 4 COM RS-232/422/485, 16 Isolated DIO
  • 9V to 50V DC wide range Power Input
  • Ignition Power Control, TPM 2.0
  • Expansion : M.2 Key B, M.2 Key E and Mini PCIe
  • Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
Documents Tech question
1 ABP3000 AI

Ultra-slim fanless Edge AI Computing system

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents
