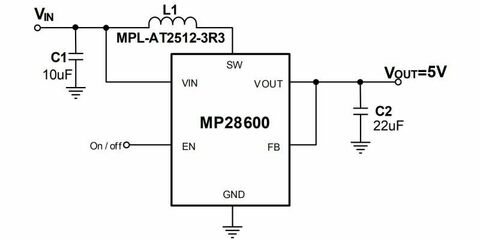

Ultra-Low Quiescent Current, Synchronous Boost Converter

03/02/2023

The MP28600 is an ultra-low quiescent current (IQ), synchronous boost converter. It is designed for battery-powered products where high efficiency under light-load conditions is critical to achieve a long battery life. It can start from a low 0.7V input voltage (VIN), then work down to a 0.1V VIN after start-up. Available in a space-saving SOT563 (1.6mmx1.6mm) package.

Main Features

  • 0.7V to 5.25V Start-Up Voltage (VST) Range
  • 0.1V to 5.25V Operating Input Voltage (VIN) Range
  • 2.5V to 5.25V Output Voltage (VOUT) Range
  • Constant-Off-Time (COT) Control Mode
  • 600nA Quiescent Current (IQ)
  • 1A Fixed Switching Current Limit
  • 86% Efficiency for 1.5V to 5V/1mA
  • Automatic Switching between Boost Mode and Down Mode
  • True Disconnect during Shutdown
  • 150°C Thermal Shutdown Protection
  • Available in an SOT563 (1.6mmx1.6mm) Package
  • Optimized Performance with MPS Inductor MPL-AT Series
Documents Tech question
MPS MP28600

Ultra-Low Quiescent Current, Synchronous Boost Converter

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 25 Mobile Wearables

    Mobile & Wearables

  • 6 Wireless Communication

    RF & Wireless communication

Technologies

  • Shutterstock 2049802019 Converted

    DC/DC converters

Monolithic Power Systems

Monolithic Power Systems provides small, highly energy efficient, easy-to-use power solutions for systems found in industrial applications, telecom infrastructures, cloud computing, automotive, and consumer applications.

Read more
Monolithic Power Systems Logo

Documents

  • MPS MP28600 Datasheet
