Main Features
- High efficacy
- CRI Options: Minimum 80, 90, 95
- Low thermal resistance
- Compatible with automatic placement equipment
- Compatible with infrared reflow solder process
- RoHs and REACH compliant
This browser is not fully supported.
This website uses cookies to provide you with a better visitor experience. Select here which type of cookies you allow.
Alcom electronics appreciates the potential business relationship between our parties. Thank you! We want to make sure we address only the mailings that are valuable to you.

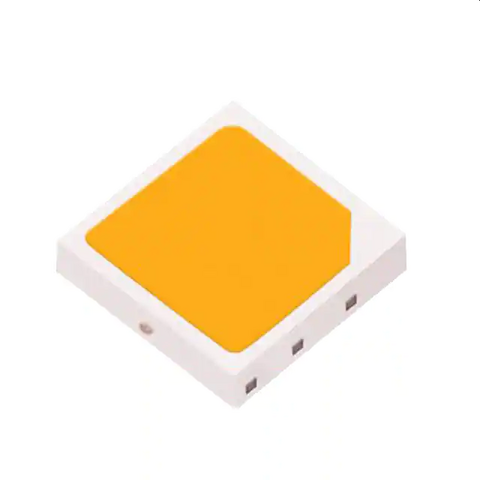

New high efficacy family of 3030 Mid-Power LEDs designed for high-performance general lighting and horticulture applications. These new MP-3030-120H ultra high-performance LEDs provide low thermal resistance, up to 226 lumens/Watt, high PPF/W, and CRI options of 80, 90 and 95 minimum.
In addition, they are compatible with standard SMT reflow solder process and are RoHs and REACH compliant. Customers who are listing their products with DLC can leverage the MP-3030-120H series 9000 hour LM-80 reports in both PPF and lumens with Q90 and L90 >36k hours under a wide range of operating conditions.
Luminus Devices develops and manufactures solid-state lighting solutions to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination.
