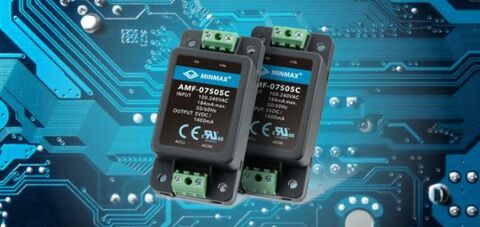

Ultra compact 7W AC-DC power modules

14/01/2022

The AMF-07 series is a new generation of fully encapsulated AC-DC power supply modules with ultra-compact size for higher power density and space saving.

The product features universal AC input 85-264VAC and wider DC input 90-370VDC, regulated output voltages 5,12,15,24,48VDC ; I/O Isolation 3000VAC with Reinforced Insulation ; EMI emission EN55014-1/32 Class B and EMS immunity EN 61000-4 standards approved ; no min. load requirement and low no-load power consumption ; abnormal protection mechanism with output overload, short circuit and overvoltage protections.

The AMF-07 series equips with PCB and Chassis Mounting Version for flexible installation and comply with UL/IEC/EN 62368-1 & IEC/EN 60335-1 for safety usage. It provides a cost effective solution especially for space critical applications in industrial and household electronic equipment.

Main Features

  • Ultra Compact Size 1.52x1.00x0.66"
  • Fully Encapsulated Plastic Case for PCB and Chassis Mounting Version
  • Universal Input 85-264VAC, 90-370VDC, 47-440Hz
  • I/O Isolation 3000VAC with Reinforced Insulation
  • No Min. Load Requirement & Low no-load power consumption
  • Operating Ambient Temp. Range -40℃ to +80℃
  • Overload/Voltage and Short Circuit Protection
  • EMI Emission EN55014-1/55032 Class B Approved
  • EMS Immunity EN61000-4-2,3,4,5,6,8,11 Approved
  • Safety Approval to UL/cUL/IEC/EN 62368-1, IEC/EN 60335-1 & CE Marking
Documents Tech question
Minmax AMF 07 series

Ultra compact 7W AC-DC power modules
