Ubuntu-based Distribution for the LTPP3(G2) Board

28/05/2021

To facilitate the rapid development and deployment of Tibbo Project System (TPS)-based automation and IoT applications while offering our users a familiar environment, we have created an Ubuntu-based Linux distribution.

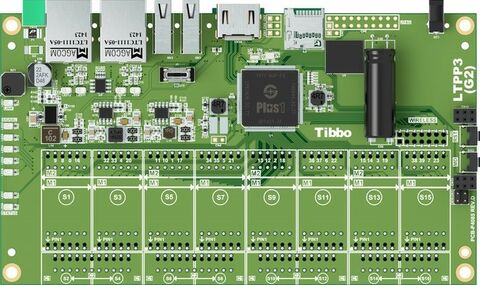

We have created an Ubuntu-based Linux distribution aimed at our users employing the LTPP3(G2) — and the Tibbo Project System (TPS) — in IoT and automation systems. The LTPP3(G2) is a Linux mainboard designed around our advanced Plus1 chip.

Tibbo's Ubuntu-derived distribution is ideal for system integration, one-off projects, low-volume applications, educational props, and rapid prototyping of products, as well as experimentation and exploration. It provides a user experience similar to that of single-board computers such as Raspberry Pi, but on an extendable hardware foundation that was purpose-built for IoT and automation projects.

Ubuntu is one of the world's most popular flavors of Linux. It runs on all kinds of platforms and architectures, and there is a massive amount of community resources available for all project types.

Main Features

Features:

  • Based on Plus1 (SP7021) quad-core 1GHz Cortex-A7 CPU
  • Eight module + eight connector sockets (for a total of 32 I/O lines)
  • Two 10/100 Base-T Ethernet ports support daisy-chaining
  • Optional 802.11a/b/g/n/ac + Bluetooth/BLE 5.0
  • Two USB 2.0 Host ports with USB Type-A connectors
  • Four UARTs + serial-over-USB console port
  • HDMI port for connecting external displays
  • Onboard buzzer
  • Up to four SPI and four I2C interfaces
  • Onboard RTC with backup supercapacitor
  • 512MB DDR3 SDRAM, 4GB eMMC
  • microSD card slot
  • 2048-byte EEPROM
  • Integrated power supply with 8V~60V input range
Documents Tech question
Tibbo Ubuntu

Ubuntu-based Distribution for the LTPP3(G2) Board

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 21 I Io T

    IoT

Technologies

  • Shutterstock 1632356350

    Microcontroller, microprocessors & memory ICs

Tibbo Technology

Tibbo Technology focuses on designing, manufacturing, and marketing programmable IoT modules, boards, and controllers for the Internet of Things (IoT), Industrial Internet of Things (IIoT), and automation applications.

Read more
Tibbo logo main

Documents

  • Tibbo LTPP3 G2 Board hardware manual
