Main Features

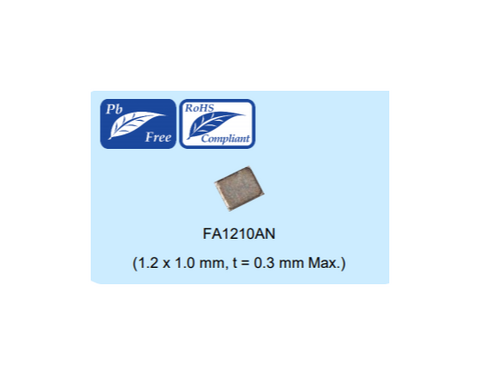

- Package size: 1.2 x 1.0 mm, t = 0.3 mm Max.
- Frequency range : 32 MHz to 100 MHz
- (Currently avail: 32 and 37.4 MHz)
- Frequency tolerance : ±10 x 10-6 (@+25 °C)
- Frequency vs. temperature characteristics:
: ±10 x 10-6 ( -20 °C to +75 °C)
: ±15 x 10-6 ( -30 °C to +85 °C)
: ±20 x 10-6 ( -40 °C to +85 °C) - ESR : 100 Ω Max. (32 MHz)
- 60 Ω Max. (37.4 MHz)
