Time Sensitive Networking (TSN) solution

06/12/2024

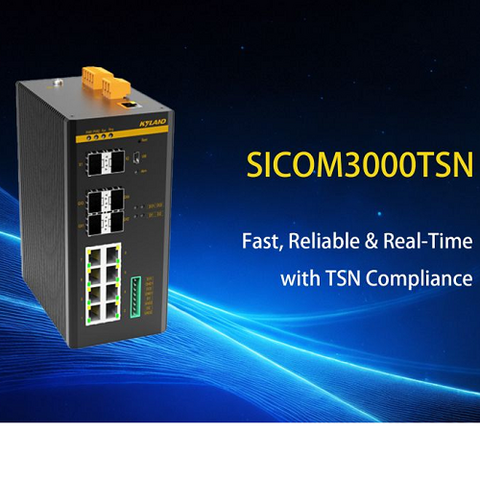

SICOM3000TSN is TSN ready Layer 2 Managed Industrial Ethernet Switch, supports 2×10GBase-X SFP+, 4×100/1000Base-X SFP, 8×10/100/1000Base-T(X) RJ45, Auto-detection, Full/Half Duplex, MDI/MDI-X. SICOM3000TSN supports standard TSN protocols: IEEE 802.1AS PTP/IEEE 802.1Qbv/IEEE 802.1Qcc/ 802.1Qav. SICOM3000TSN supports IEEE1588 PTPV2, DRP (recovery time<20ms), RSTP/MSTP, VLAN, Multicast, QoS, SSH and many other Layer 2 software features, and supports CLI, Telnet, Web management methods, Network management software centralized management based on SNMPv1/v2c/v3. SICOM3000TSN is especially designed for harsh environments with wide operating temperature range, EMC level 4, IP40 protection class, strong vibration-resistent mounting clip for DIN-Rail installation, and can be deployed in Industrial automation, Power, Automotive electronics, Transportation and many other industrial applications.

Main Features

  • Supports 2×10GBase-X SFP+, 4×100/1000Base-X SFP, 8×10/100/1000Base-T(X) RJ45, Auto-detection, Full/Half Duplex, MDI/MDI-X
  • Supports standard TSN protocols: IEEE 802.1AS PTP/IEEE 802.1Qbv/IEEE 802.1Qcc/ 802.1Qav
  • Supports RSTP/MSTP, DRP
  • Supports CNC centralized network configuration
  • Supports IP40
  • Operation Temperature: -40°C~85°C
  • Supports EMC Level 4 and IEC61850-3
Documents Tech question
Kyland SICOM3000 TSN

Time Sensitive Networking (TSN) solution

  • Applications
  • Technologies
  • Manufacturer
  • Documents
