The Ag5400 series Power-over-Ethernet (PoE+) modules

18/06/2021

The Ag5400 is now the Highest Efficiency IEEE 802.3AT Module in the world.

The Ag5400 series Power-over-Ethernet (PoE+) modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE802.3 PoE standard, with full backwards compatibility with the IEEE802.3bt, IEEE802.3at and IEEE802.3af amendments.

The Ag5400 is pre-configured as a Type 2 Class 4 device, allowing the module to draw up to 30W of power from the PSE.

The high efficiency DC/DC converter can achieve in excess of 93% efficiency and operates over a wide input voltage range with a low ripple and low noise output. The DC/DC converter also has built-in output overload, output short-circuit and overtemperature protection and provides a 1500Vdc (input to output) isolation barrier.

Part Number Output Voltage Output Power
Ag5405 5V 25.5W Continuous, 30W Peak
Ag5412 12V 30 Watts
Ag5424 24V 30 Watts

Main Features

  • Very high efficiency (>93%)
  • Environmentally friendly
  • SIL - 57mm(L)x18mm(W)x14mm(H)
  • Very low heat output
  • Low output ripple & noise
  • Overload, short-circuit and thermal protection
  • Adjustable output voltage
  • Very few external low cost components required
  • Industrial temperature range
  • Class 4 IEEE802.3 PD
  • IEEE802.3bt, IEEE802.3at, IEEE802.3af compliant
  • 1500Vdc isolation (input to output)
Documents Tech question

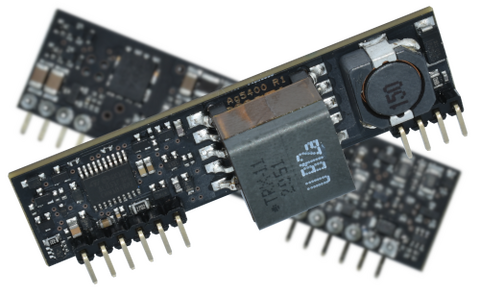

Ag5400 cross
