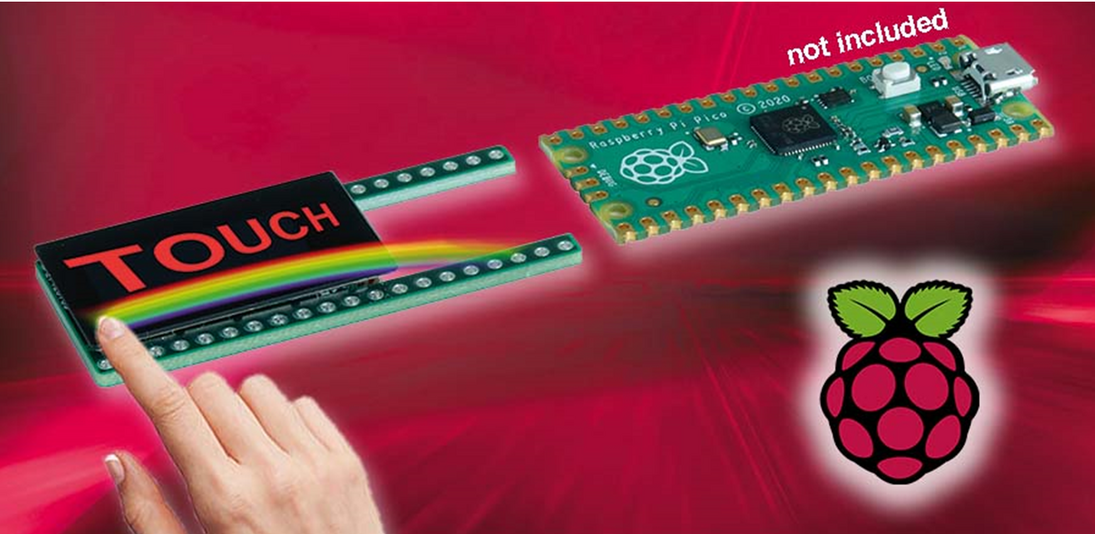

TFT Display (IPS) for Raspberry Pico

05/08/2022

The new Raspberry Pi Pico is ideal for IOT applications: small, inexpensive and power-saving with 0.4 W in operation or 6 mW in sleep mode. To match this, there is now a compact TFT display with 80 mW power consumption only that can be soldered on directly. The display is supplied pre-assembled. This makes it a child's play to display any measured values and parameters. Currently 2 different versions are available:

  • 0.9" IPS DIsplay, 500 cd/m²: EA RaPicoTFT009
  • 0.9" IPS Display with touch, 400 cd/m²: EA RaPicoTFT009TC

Both versions include well-documented C code that supports to display some text in different fonts, deleting and filling areas, displaying images and using the touch panel.

Main Features

  • SHIELD FOR RASPBERRY PI PICO (RP2040)
  • IPS DISPLAY WITH 160x80 PIXEL, 0.96”
  • INCL: EA TFT009-81AINN WITH 4 WIRE SPI INTERFACE INCL. CONTROLLER ST7735S
  • INCL: EA TFT009-81AITC WITH PCAP TOUCH PANEL
  • HIGH CONTRAST
  • WIDE VIEWING ANGLE DUE TO AACS (ALL ANGLE COLOR STABILITY) DISPLAY
  • TOP -20..+70 °C
  • OPTIONAL WITH PCAP VIA I²C INTERFACE
Documents Tech question
