Main Features

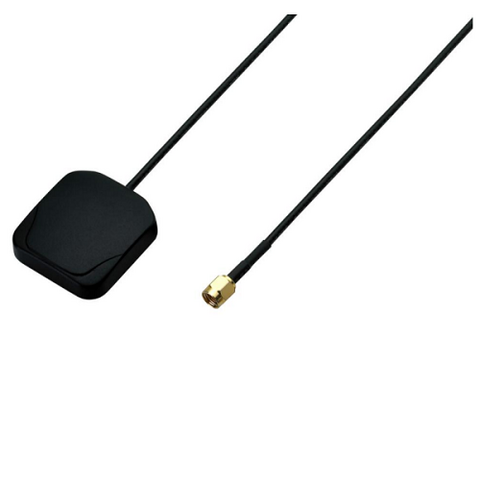

- Ulysses Ultra-Low Profile Miniature GPS/GLONASS Antenna
- Magnetic Mount Solution
- High Gain between 1575-1610MHz
- CE Certified
- Cable: 3M RG-174
- Connector: SMA(M)
- Dims: 40.4*37.8*10mm
This browser is not fully supported.
This website uses cookies to provide you with a better visitor experience. Select here which type of cookies you allow.
Alcom electronics appreciates the potential business relationship between our parties. Thank you! We want to make sure we address only the mailings that are valuable to you.
At just 10mm in height, the Ulysses GNSS antenna is designed for applications which require high positioning accuracy by combining signals from GPS, GALILEO and GLONASS systems. A high gain wide-band patch antenna on an integral ground delivers reliable performance. A fully IP67 rated enclosure allows for use in harsh outdoor environments. The front-end SAW filter configuration eliminates potential LNA burn-out from nearby out-of-band radiated power bursts from other antennas that may be located nearby. The CE marked antenna is manufactured to a strict first-tier Automotive-quality controlled manufacturing process in IATF16949 approved facility.
Taoglas is the world’s leading provider of next-generation IoT solutions, combining the latest in high-performance RF antenna with advanced positioning, imaging, audio and artificial intelligence technologies for companies with unique IoT challenges.
