Smart IoT system for the selective collection of waste

15/10/2021

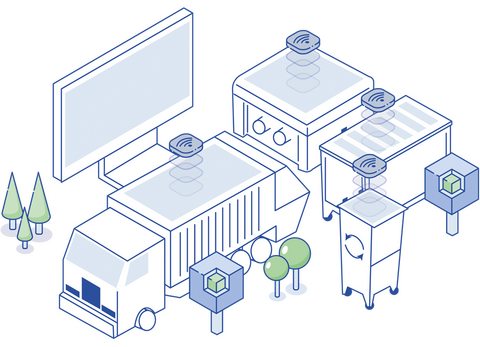

MTX-DigitalEco System offers a comprehensive solution for the selective collection of waste, adaptable to different existing scenarios. It provides solutions for the management of container openings and for the unified operations system, including an app for the users, a management platform and routes for the operators, and a control platform for the unified operations center.

The MTX-DigitalEco System provides IoT solutions for the different elements that can become part of a selective waste collection ecosystem. On the one hand, an MTX-StarEco installed in each container controls and identifies every opening. The opening can be done via BLE or via NFC. The information collected is sent to the Cervello platform through NB-IoT or through BLE (by trucks). On the other hand, the collection operators have a route and incident management platform thanks to the WiFi of the MTX-Router-Titan LTE/4G. Finally, the entire process is controlled from the Unified Operations Center, which receives all the information from Cervello IoT Platform.

Main Features

1. Smart Container:

The MTX-StarEco modem, placed in each container, manages all the container openings, as well as the monitoring of the container itself through sensors that control the filling level and the environmental conditions.

Hardware: MTX-StarEco

Industrial IoT modem with NB-IoT, Bluetooth, IP67 and battery

2. Smart Truck:

Thanks to the MTX-Router-Titan and an application designed for operators, the traditional waste collection truck is transformed into a smart truck with WiFi, LTE/4G connectivity and an interactive tablet or panel PC.

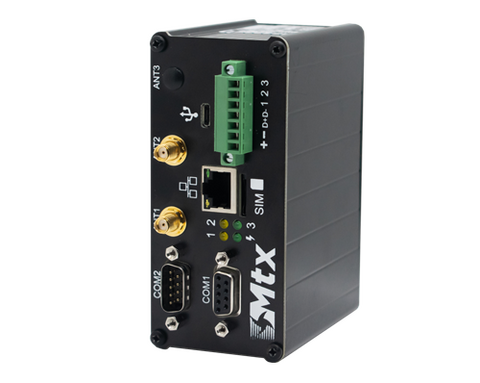

Hardware: MTX-Router-Titan

Industrial IoT router with LTE/4G, WiFi, Bluetooth, and IP67

3. Unified Operations Center:

It is the brain of the MTX-DigitalEco System. Implemented in Cervello, the unified operations center is an IoT platform in the cloud that allows comprehensive control of the entire system: it manages deployed devices, knows the status of the containers, obtains information on openings, views alarms and monitors routes of waste collection, among other functions.
