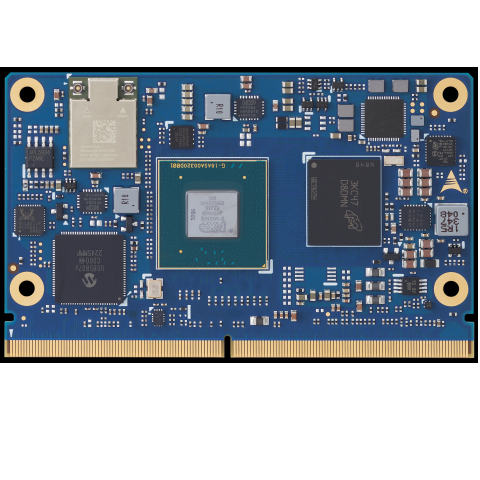

SMARC® 2.1 Short Size Module with NXP i.MX95

05/07/2024

The LEC-IMX95, based on the powerful NXP i.MX95 (6x Arm Cortex-A55 + 1x Arm Cortex-M7 + 1x Arm Cortex-M33) processor with an integrated ISP and eIQ Neutron Neural Processing Unit (NPU) operating at up to 2 TOPS, is the latest SMARC revision 2.1 compliant module. It combines power-efficient high-performance compute, immersive Arm® Mali™-powered 3D graphics, innovative NXP NPU accelerator for machine learning, and high-speed data processing with safety and security features.

Additionally, it supports dual Image Signal Processors and two camera inputs for an effective Vision System. The LEC-IMX95 is suited for next generation IoT and industrial applications such as smart home, building, city, medical and industry 4.0.

Main Features

  • NXP i.MX 95 with Hexa-core Arm Cortex-A55
  • 1x Arm Cortex-M7 and 1x Arm Cortex-M33
  • Integrated eIQ Neutron NPU, ISP and VPU
  • Arm Mali G310 3D Graphics
  • LVDS, DSI, HDMI graphic output interfaces
  • 2x GbE ports, 1x 10Gb (TSN capable)/ Wi-Fi / BT
  • I²S / Dual CAN bus / USB 2.0 / USB 3.0 interfaces
  • Rugged operating temperature (optional): -40°C to 85°C
Documents Tech question
Adlink LEC IMX95

SMARC® 2.1 Short Size Module with NXP i.MX95

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 17 Home Building Automation

    Home & Building Automation

  • 21 I Io T

    IoT

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

  • 12 Security Surveillance

    Security & Surveillance

Technologies

  • Shutterstock 1178903887

    Computer & System-on-Modules

Adlink

Adlink's mission is to affect positive change in society and industry by connecting people, places and assets with artificial intelligence; we do this through the delivery of leading edge, robust and reliable hardware and software solutions that directly address mission-critical business and technology challenges.

Read more
Adlink Logo

Documents

  • Adlink LEC i MX95 prelim datasheet
