SMARC 2.1 Module with Intel Atom® processors x7000E, Core™ i3 and N Series (“Alder Lake-N”).

13/01/2023

The SMARC 2.1 module TQMxE41S is available with a wide variety of processors in the power range 6 W to 15 W TDP. It combines high CPU and graphics performance (incl. increased AI acceleration) with a variety of high-speed interfaces such as 2x 2.5 Gigabit Ethernet, 4x PCIe, USB 3.2 and SATA in a very compact design. The high system performance is supported by the latest LPDDR5-4800 memory and up to 256 GB Industrial iNAND eMMC. Many other interfaces ensure easy connection of numerous peripheral components.

Main Features

  • Intel Atom® processors x7000E Series, Intel® Core™ i3 processors, and Intel® Processors N Series
  • One common design from dual-core up to 8-core
  • High efficiency with 6 W to 15 W processor power
  • Up to 16 GB LPDDR5, with In-Band-ECC (option)
  • Up to 256 GB eMMC
  • Three independent high-resolution display outputs including DP++, HDMI and eDP/LVDS
  • Intel® AVX256 and Intel® Deep Learning boost support
  • 2x 2.5 Gigabit ETH, high-speed PCIe and IO
  • Extended security features
  • Small size (82 mm x 50 mm)
  • SGeT SMARC 2.1 (RC1) compliant
Documents Tech question

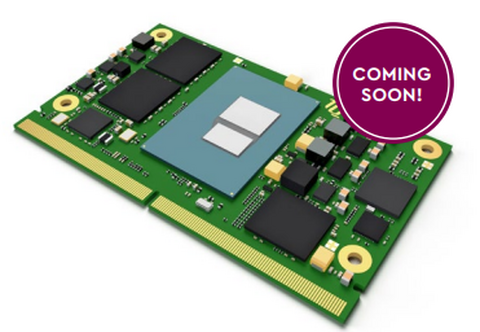

Schermafbeelding 2023 01 13 095211

SMARC 2.1 Module with Intel Atom® processors x7000E, Core™ i3 and N Series (“Alder Lake-N”).
