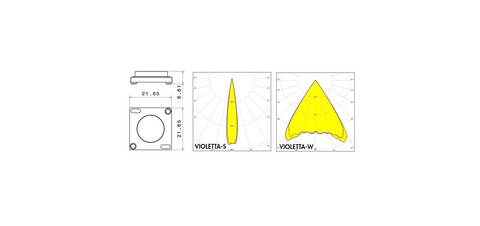

Main Features
F17826_Violetta-W
- Dimensions: 21.7 mm x 21.7 mm
- Height: 6.51 mm
- ~60° wide beam
F17822_Violetta-S
- Dimensions: 21.7 mm x 21.7 mm
- Height: 6.60 mm
- ~15° wide beam
This browser is not fully supported.
This website uses cookies to provide you with a better visitor experience. Select here which type of cookies you allow.
Alcom electronics appreciates the potential business relationship between our parties. Thank you! We want to make sure we address only the mailings that are valuable to you.
The new VIOLETTA single lenses expand the LEDiL portfolio of highly efficient LED optics for professional UV-C disinfection. The lenses share the same footprint as our well-known ROSE-product family with a low profile allowing for a wide variety of compact luminaire designs.
The lenses provide over 80 % efficiency at 280 nm wavelength and the soft silicone provides easy ingress protection against water, dirt and dust when using a sandwich mount between the luminaire faceplate and the PCB.
Nobody understands optics like Ledil. Ledil is the leading optics provider to lighting manufacturers throughout the world with the widest range of a standard product portfolio and custom solutions.
