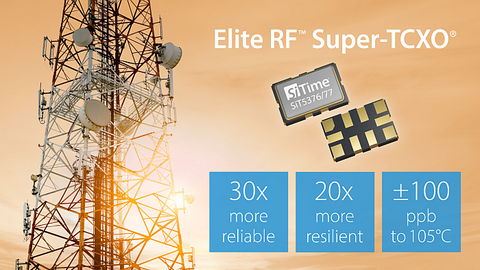

SiTime Rearchitects Wireless Infrastructure Timing with New Elite RF Platform

09/12/2022

The new precision timing platform, Elite RF™ simplifies timing architecture in wireless infrastructure. The Elite RF Super-TCXO® enables higher bandwidth and lower latency that is critical to future 5G and satellite communications deployment. This new platform expands SiTime’s SAM by $150M with target applications such as infrastructure radios in small cells, remote radio units (RRUs), microwave backhaul, and SATCOM equipment.

The Elite RF Super-TCXO is an entirely new class of MEMS-based temperature-controlled oscillators. They are purpose-built to withstand extreme environments in which 5G radios are deployed, while delivering the phase noise, accuracy, and resilience in a single, highly integrated device. These devices also meet the stringent performance requirements specified by the IEEE 1588v2 timing synchronization protocol.

Main Features

  • 1 to 220 MHz any frequency output
  • ±100 ppb stability over temperature
  • -40 °C to +105 °C operating temperature range
  • ±0.9 ppb/°C stability over temperature slope
  • ±400 ppm digital control with ±0.05 ppt (parts per trillion) resolution
  • 100 fs typical integrated phase jitter (19.2 MHz, 12 kHz to 20 MHz integration range)
  • 0.3 ppb/day typical daily aging
  • 144 mW power consumption at 1.8V
  • 5.0 mm x 3.5 mm ceramic package
Documents Tech question
Sitime Elite RF Super TCXO

SiTime Rearchitects Wireless Infrastructure Timing with New Elite RF Platform

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 6 Wireless Communication

    RF & Wireless communication

  • 8 Instrumentation

    T&M and instrumentation

Technologies

  • Screenshot 2022 05 04 130706

    Timing & frequency control

SiTime

SiTime Corporation is the leader in MEMS-based timing. Transforming the timing industry with configurable solutions that replace legacy quartz devices SiTime enables differentiation of products with the higher performance, smaller size, lower power and beter reliability.

Read more
Si Time Logo

Documents

  • Sitime Si T5377 product sheet
  • Sitime Si T5376 product sheet
