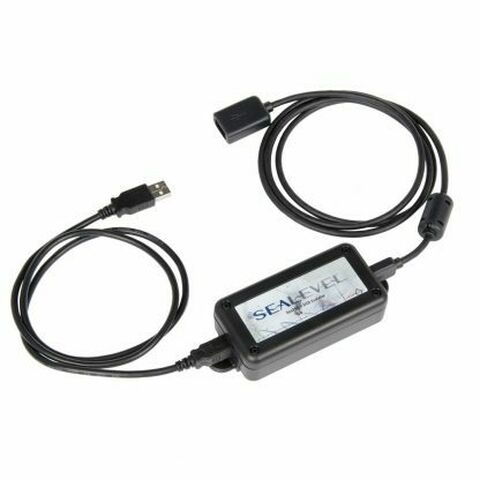

The SeaISO™ ISO-1 single-port, inline USB isolator offers a simple method of protecting host and field equipment from damaging transients and surges commonly found in commercial, industrial and medical environments. The ISO-1 is UL Recognized, in accordance with EN60601-1 3rd Edition, and protects both the data and power lines with 4 kV of medical-grade isolation between the host control system and connected USB equipment.
The ISO-1 is USB bus powered, eliminating the need for external power. The efficient DC/DC design allows energy transfer over the isolation barrier. The isolator provides up to 300 mA to a downstream USB device when connected to a standard 500 mA USB port. Additionally, the isolator can provide a full 500 mA to a downstream device when connected to a USB port capable of sourcing 1 A, or greater. Convenient high-retention USB connectors prevent accidental cable disconnections.
Sealevel reinvented the I/O and industrial computing industry with the first RS-422/485 communication adapter for the IBM PC. Since 1986, Sealevel has continued to redefine design, engineering and manufacturing for industrial computers, Ethernet serial servers, USB serial, PCI Express and PCI bus cards, and IoT hardware and software. All products are world class, American made.
