SID/OFT open frame tablets and semi-industrial panel PC's

10/02/2023

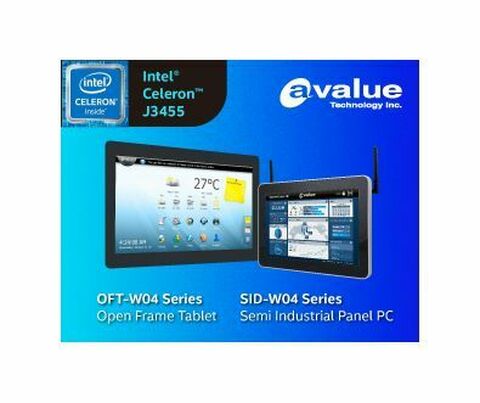

OFT (open-frame multi-touch tablet PC) series – OFT-10W04/ OFT-15W04/ OFT-21W04

The OFT series consists of open-frame multi-touch tablet PCs which use low-power Intel® Celeron^TM J3455 processor. With TFT Full HD LCD displays available in sizes 10”, 15” and 21”, you can choose the right fit for your application. Furthermore, the OFT series’ full-flat thin bezel design with projected capacitive technology make them extremely suitable for any application that requires touch control.

SID (semi-industrial tablet PC) series – SID-10W04/ SID-15W04/ SID-21W04

The SID series consists of semi-industrial tablet PCs which use low-power Intel® Celeron^TM J3455 processor. Its TFT WXGA LCD displays are available in 10”, 15” and 21”. Designed for humid and dusty environments, the SID series has an aluminum front frame, and an IP65 rating for waterproof and dustproof protection. Its full-flat panel design also facilitates usage and cleaning by operators working in an industrial environment.

Main Features

Main features of OFT-10W04/ OFT-15W04/ OFT-21W04:

Intel® Apollo Lake Processor J3455
Intel® HD Graphics 500
Memory Socket with 4GB DDR3L, Max. Up to 8GB 1866 MT/s
Onboard 32GB eMMC
Dual Display, LCD & HDMI 1.4b
Gigabit Ethernet
1-M.2, Key-E with WiFi5/BT5.0 module
1-M.2, Key-B for LTE, SSD, 1-Micro SD socket
2-RS232, 1-RS485, 16bit GPIO, 2-USB3.0, 6W Audio AMP

Main features of SID-10/15/21W04 Series:

Intel® Celeron™ J3455
Intel® HD Graphics 500
Memory Socket with 4GB DDR3, Max. Up to 8GB 1866 MT/s, onboard 32GB eMMC
Dual Display, LCD & HDMI 1.4b, PCAP touch (IP65 front)
1-M.2, Key-E with WiFi5/BT5.0 module, 1-GLAN
1-M.2, Key-B for LTE, SSD
RS232/RS485, 2-USB 3.0, 1-HDMI, 1-Audio Jack
Optional support OOB module & Apacer CoreSnapshot SSD
CE, FCC Class B, RED Certified
