Ruggedized Edge Computing Solutions

05/11/2021

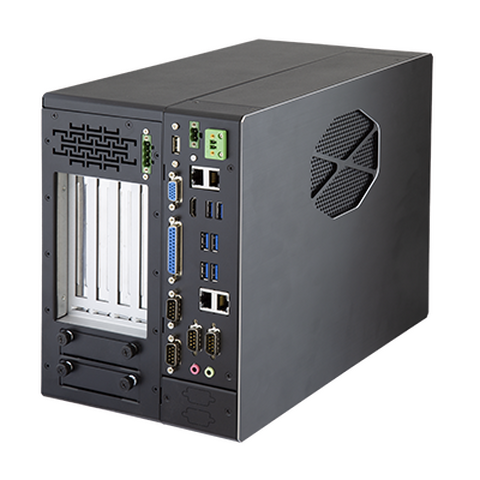

Edge computing happens on local servers and devices at the edge then the computation is moved as close to the source. ARBOR's edge computing compact Box PC was designed for transportation applications, with high connectivity of wireless communication module and high performance. Powerful Box PC FPC-9107 enables to share the workloads at the edge. It comes with Intel's 10th Gen processor and 2 PCI-E expansion slots are designed for two Tesla graphic cards or a single 250W GPU graphic card to enhance edge computing and AI inferencing applications.

Main Features

FPC-9107-P6-G2

  • Intel 10th Gen (Comet Lake-S ) with W480E chipset
  • Supports dual NVIDIA® Tesla T4 GPU or RTX-30 series up to 250W GPU
  • Wide Range DC power input (12~36V)
  • HDMI x 1 +VGA x1 ( 2 independent display )
  • Power on/off delay control/ Configurable ignition power control
  • TPM2.0 support
  • 2 x outside accessible SATA SSD, supporting RAID 0,1
  • 2 x USB3.2 supports up to 10Gbps data transfer
  • Front-accessible I/O support
  • SMART FAN control support
  • 6 x 802.3af Gigabit PoE ports
  • 1 x M.2 (NGFF) B-Key(2242/3052/2280) socket for storge or 5G / LTE• 1 x M.2 (NGFF) E-Key(2230) socket for WiFi / BT


FPC-9107-L2U4-G2

  • Intel 10th Gen (Comet Lake-S ) with W480E chipset
  • Supports dual NVIDIA® Tesla T4 GPU or 250W GPU
  • Wide Range DC power input (12~36V)
  • HDMI x 1 +VGA x1 ( 2 independent display )
  • Power on/off delay control/ Configurable ignition power control• TPM2.0 support
  • 2 x outside accessible SATA SSD, supporting RAID 0,1
  • 2 x USB3.2 supports up to 10Gbps data transfer
  • Front-accessible I/O support
  • SMART FAN control support
  • 1 x M.2 (NGFF) B-Key(2242/3052/2280) socket for storge or 5G / LTE
  • 1 x M.2 (NGFF) E-Key(2230) socket for WiFi / BT
Documents Tech question
Arbor 1 FPC 9107 L2 U4 G2 FL 21053110 847 Fpc
