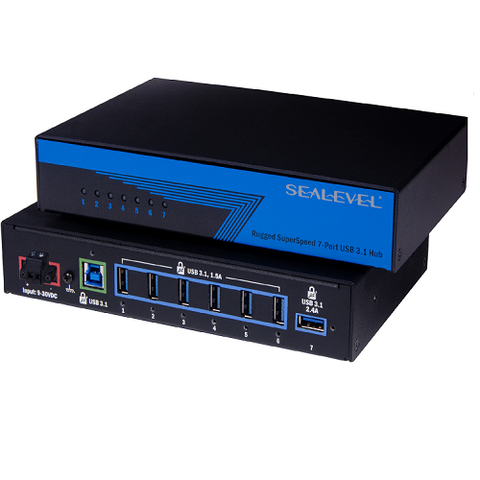

Rugged SuperSpeed 7-Port USB 3.1 Hub

03/11/2023

The HUB7SS-BA features a rugged, industrial-grade, metal housing, robust ESD protections, USB 3.1 compliance and backward compatibility with legacy USB data rates. The HUB7SS-BA is designed to meet the advanced requirements for connecting multiple USB peripherals in extreme environments while achieving SuperSpeed operation.

The HUB7SS-BA ships with port 7 configured as a Charging Downstream Port (CDP) capable of supplying up to 2.4A of current to a connected device. The remaining six CDPs supply up to 1500 mA to each connected device.

Main Features

USB 3.1 Hub provides seven Charging Downstream USB ports (CDPs)
One CDP supplies up to 2.4A while the other six CDPs supply 1500mA each
CDPs are battery charging specification BCv1.2 compliant
Supports SuperSpeed (5Gbps), high-speed (480Mbps), full-speed (12Mbps) and low-speed (1.5Mbps) operation
ESD protection
±8kV on each USB 2.0 data line (D+, D-)
±15kV on each USB 3.0 data line (SSTX+, SSTX-, SSRX+, SSRX-)
Fully supported in Microsoft Windows 8/10 and other USB-aware operating systems (compatible with all operating systems that support USB 1.1/2.0/3.0)
Optional wall-mount AC power supply accessory outputs 24VDC @ 2.71A (Item# TR152) and mates via the HUB7SS-BA’s included locking DC terminal block/connector
