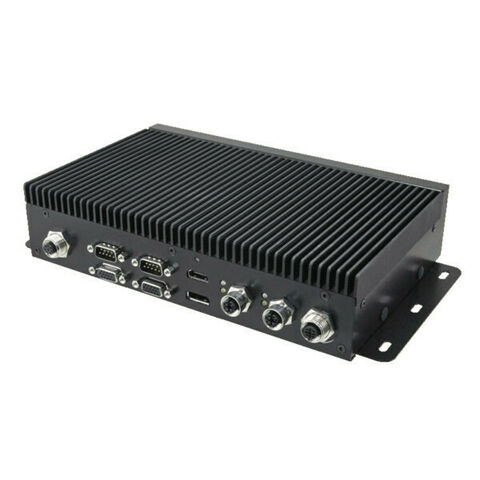

Rugged Fanless Railway System

08/09/2023

Introducing the VMS-EHLR, Avalue's pioneering rail solution powered by Intel Elkhart Lake Atom x6425E CPU, supporting 32GB DDR4 memory. Designed for rolling stock, the VMS-EHLR is certified to EN 50155, EN 50121 and EN 45545 railway standards. Its compact, fanless design, wide temperature range and adaptable voltage compatibility make it easy to manage critical operations. With military-grade certification and M12 connectors, the VMS-EHLR ensures data transmission accuracy in environments with frequent vibration and shock. Trust the VMS-EHLR as your railway companion where innovation meets reliability!

Main Features

  • Intel® Elkhart Lake Atom™ x6425E Processor
  • Intel® UHD Graphic for 10th Gen Intel® Processor
  • 1-Memory Socket, Max. Up to 32GB DDR4 3200
  • 2-COM Port (RS-232/422/485 by BIOS & Jumper)
  • 2-Storage (Front Access 2.5” & M.2 Key-B SSD)
  • 3-Disaply (DP 1.4 & HDMI 2.0 & VGA)
  • 3-Expansion (mPCIe & M.2 Key-E/B)
  • 4-M12 (DC-Input, USB 2.0, 2-LAN Port)
  • 8-Bit Programable GPIO with 2.5KV Isolated
  • Default Wall Mount Kit, dTPM 2.0 onboard
Documents Tech question
VMS EHLR A1 1 R 1

Rugged Fanless Railway System

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • Shutterstock 2051297759

    In-vehicle computing

  • 18 Traffic Transportation

    Traffic & Transportation

Technologies

  • Shutterstock 740406568

    Industrial PC & systems

Avalue

Avalue Technology is a professional industrial computer manufacturing company, who is dedicated to developing the x86 and RISC architecture products.
