Rugged Box PC solutions for industrial machine vision projects

14/10/2022

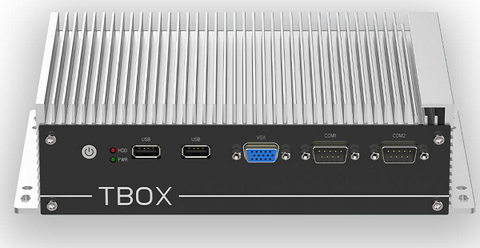

The latest TBOX-3111 model rugged industrial fanless Box PCs with PoE feature, equipped with the Intel Elkhart Lake Celeron J6413 Quad-core processor, with stronger graphic performance (Intel UHD Graphic Gen. 10). The TBOX-3111 industrial box computer is designed with rich IO interfaces.

The TBOX-3111 fanless box PC optional provides wide-voltage DC 9~36V power input; the whole system uses a high-strength sheet-metal box structure and a large area heat sink to achieve effective heat dissipation; the operating temperature can support industrial wide temperature -20 ~ +70 range, support wall mount, very suitable for industrial automation, industrial IoT, smart manufacturing, industrial robots, machinery, industrial control equipment, industrial communications and other industries.

Main Features

  • Intel Elkhart Lake Celeron J6413 Quad-core processors
  • 1* DDR4 memory socket, max. up to 16GB
  • 1* M.2 M-key 2280 SATA SSD, and 1* 2.5” SATA Storage
  • Two independent displays: 1* HDMI, 1* VGA
  • DC 9~36V input, with over-current, over-voltage, polarity protection
  • 4* GLAN (3* PoE), 6* USB, 2*COM, 32* GPIO
  • 1* Mini-PCIe and 1* M.2 2230 E-key slots for wireless and modules expansion
  • Industrial -20 ~ + 70℃ operating temperature range
Documents Tech question
Taicenn TBOX3111

Rugged Box PC solutions for industrial machine vision projects

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 21 I Io T

    IoT

Technologies

  • Shutterstock 740406568

    Industrial PC & systems

Taicenn

TAICENN, founded in Shenzhen, is a leading global provider and manufacturer of industrial panel PC, industrial display and industrial& embedded PC products, which are designed specifically for systems and applications that require excellent performance, high-level reliability and stability, long supply period and support.

Read more
Taicenn logo

Documents

  • Taicenn TBOX3111 Datasheet
