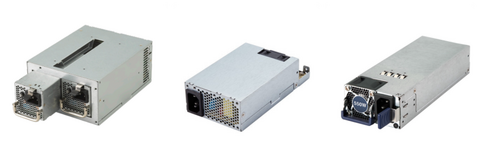

Redundant, Flex and PS2 redundant Power supplies

27/09/2024
Redundant
  • CRPS with IEC 62368 Safety certificated
  • 80 Plus Titanium & Platinum efficiency
  • Support PMBus v1.2
  • Fully digital design
  • Well working performance at 55°C
  • Best solution for data center, telecom server and NAS

    Applications: For standard, advanced rack servers (including micro, cloud server, embedded
    servers…etc.), 5G network and storage system.
Flex
  • Easy swap or install with cable management design
  • Widely input range: 90 to 264Vac, -24V dc & -48Vdc
  • Standard ATX output plus one 24Vdc for POS
  • Total output power from 100W to 500W in one standard size
  • Max. 850W with 220mm (L) with PMBus v1.2

    Applications: For industry system, DVR/NVR, NAS, digital signage, ATM/Kiosk, firewall and networking systems.
PS2 Redundant
  • Easy install in tower or 4U server with standard ATX screw positions
  • Total output power from 350W to 900W
  • Support PMBus v1.2
  • Low acoustic level for office or home environments

Applications: For industry controller, NAS and storage system.
