- IEC60601-1 3rd Edition Medical Safety
- Universal 90-264 VAC Input, 50/60 Hz
- Class I & II Input with Functional Earth
- IEC60601-1-2 EMC Class B Emissions
- BF Leakage
- 2 MOPP
- CF Leakage Options available
This browser is not fully supported.
Alcom electronics appreciates the potential business relationship between our parties. Thank you! We want to make sure we address only the mailings that are valuable to you.

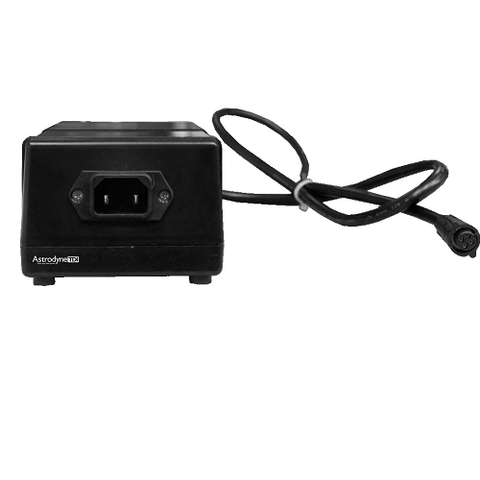

The EDP400 series is the first standard line of power adapters above 60W that achieves CF leakage and Class B EMC with only a Class II input. This line of power adapters operates over the input voltage range of 90 to 264 VAC at 50-60Hz frequency and produces 400 Watts of regulated DC output power.
The EDP400 series is safety certified to the most stringent certifications. It can be used in a variety of medical applications, including cardiac connect devices, blood and fluid warmers, and other therapeutic-type devices. This new series also offers BF or CF leakage options and Class I and Class II Functional Earth input options with 2x Means of Patient Protection (2 MOPP) isolation to ensure end-user safety. They are UL certified to meet the latest safety standards, including IEC 60601-1-1 3rd edition for medical applications using the CB reporting scheme and include the UL Recognized marks for North America and the EU and the CE mark.
Astrodyne TDI designs and manufactures Power Supplies and EMI Filters for a variety of markets, including Aerospace, Industrial, Medical, Military and Semiconductor Manufacturing.
