PICMG COM-HPC committee approves COM-HPC Mini pinout

23/12/2022

The new credit-card-sized (95x60mm) high-performance Computer-on-Module specification COM-HPC Mini standard is now entering the home stretch towards final ratification, which is scheduled for the first half of 2023. Designed for small yet extremely performance-hungry applications the new COM-HPC Mini specification will open up the prospect of developing ultra-powerful microcomputers the size of a 4- or 8-port Ethernet switch, for example. Such small system sizes are needed in many segments of embedded and edge computing. Target markets include box PCs and control cabinet / DIN-rail PCs, adaptive IoT gateways for the brownfield, cyber-secure edge computers for critical IT/OT infrastructures, rugged tablets, and even ultra-rugged robots and in-vehicle computers wanting to take advantage of the soldered RAM which is a standard feature of these modules. Processors predestined for this new form factor are the 12th Gen Intel Core processor series – for which congatec already offers a ready-to-deploy design study for initial lab tests and customer feedback loops – and its future successors.

Main Features

  • Use of just one high-speed connector instead of two
  • Connector with a different pinout to provide an optimized feature set
  • Small Form Factor dimension 95mmx60mm
  • Maximum heat dissipation of the Mini standard is reduced
  • Maximum power consumption of up to 76 Watt
  • The overall construction height of the module and heatspreader design are now 5 mm lower (15mm instead of 20mm)
Documents Tech question

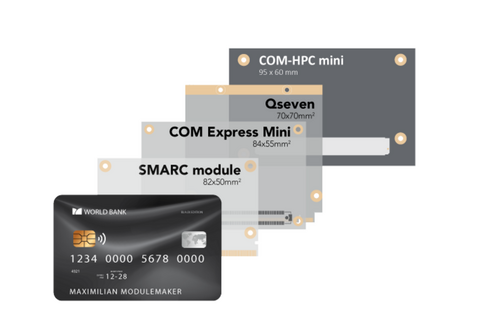

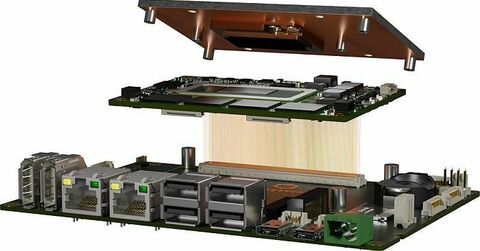

Congatec COM HPC Miniwithcarrierand HSP Congatec COM HPC Mini module size
