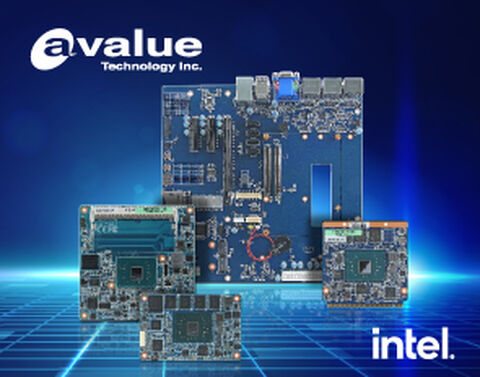

Painless upgrades, fast integration with Avalue COM module products

Features:

ESM-APLM

• COM Express™ 3.0 Mini Type 10 module with Intel®
• Celeron®N3350 / Pentium® N4200 SoC BGA Processor Onboard DDR3L memory support for up to 8 GByte at
• 1866MT/s
• Newest Intel® Gen9 Low Power graphics, up to 4K resolution
• and H.265 codec
• 1 PCIex 4 (Supports x1, x2, x4, optional 1 PCIex4 while
• removing Ethernet) compliant to PCIe Gen2 5.0 GT/s
• 2 x SATAIII 6 Gb/s, 2 x USB 3.1 (Gen1) and 8 x USB 2.0,
• eMMC 5.1 (optional)

Features:

ESM-APLC

• Onboard Intel® Celeron®N3350,J3455 / Pentium® N4200 SoC BGA Processor
• 1 Sockets 204-pin, SO-DIMM up to 8GB DDR3L 1866 SDRAM

• Support Dual Channel18/24 bit LVDS, Display Port, HDMI, VGA, eDP (Optional)
• Intel I211 Gigabit Ethernet
• 2 SATA 3.0, 8 USB 2.0, 4 USB 3.0, 8-bit GPIO
• HD Audio Interface
• +9~+19V Wide Range Power Input
• Type 6 Rev 2.1 Pin-outCompact Size: 95x95mm
• TPM2.0 (Optional)
• eMMC 5.0 up to 64GB (optional)

Features:

EQM-APL

• Onboard Intel® Pentium®/Celeron® SoC BGA processor Onboard DDR3L 1866 4GB
• Up to 8GB
• 2 SATA III, 6 USB 2.0, 2 USB 3.0, 3 PCIe2.0

• Dual Channel 18/24-bit LVDS + HDMI
• Supports eMMC 5.0, SD card(SDIO 3.0)
• Qseven Form Factor Rev. 2.1 compliant
• Standard Temperature: 0°C ~ +70°C

Features:

ESM-CFH

• PICMG COM R3.0 Type 6 module with Intel® 9th/8th
• Generation Xeon®/Core™ i7 / i5 / i3 Processors

• Up to 3x 260-pin DDR4 non-ECC/ECC 2400/2133 SO- DIMM with up to 96 GByte
• Dual-channel 18/24-bit LVDS, VGA, DP/HDMI/DVI, (eDP Option)
• Flexible I/O support with 4 USB3.2 Gen.2, 8 USB 2.0, Gen3
• PEGx16, 8 PCIex1 & 4 SATAIII
• Intel® I219LM Gigabit Ethernet PHY
• 9V~19V Wide Range Voltage Input
• TPM 2.0
• AMT 12.0 support
