OSM-IMX93 and OSM-IMX8MP based OSM Modules small size, high performance

20/09/2024

OSM-IMX93

The OSM-IMX93 is an OSM R1.1 Size-L module featuring NXP® i.MX93 series processor with 2-core Arm Cortex-A55 & M33. With its in-SoC Arm Ethos U-65 microNPU, the module is made for edge solutions needing on-device AI processing at ultra-low power.

The OSM-IMX93 module supports LVDS and DSI graphics output, 2x GbE (1 TSN capable), 2x CAN bus, I2S audio codec interface, USB2 interfaces, and provides 15-year product availability.

Boasting the highest safety standards with a separate security island and available with rugged operating temperature options (-40°C to 85°C), the OSM-IMX93 is your ideal solution for various edge AI applications.

OSM-IMX8MP

The OSM-IMX8MP is an OSM R1.1 Size-L module featuring NXP® i.MX 8M Pluss series processor with 4-core Arm Cortex-A53 and M7, up to 8GB LPDDR4L memory and up to 128GB eMMC storage. With its in-SoC 2.3 TOPS NPU and Vivante GC7000UL graphics, the module is made for edge solutions needing on-device AI processing at ultra-low power.

The OSM-IMX8MP module supports HDMI, LVDS and DSI graphics output, 2x GbE (1 TSN capable), 2x CAN bus, I2S audio codec interface, USB 3.0 and USB 2.0 interfaces, MIPI-CSI and provides 15-year product availability.

Boasting the highest safety standards with a separate security island and available with rugged operating temperature options (-40°C to 85°C), the OSM-IMX8MP is your ideal solution for various IoT and edge AI applications.

Main Features

OSM-IMX93 Key Features

  • NXP® i.MX93 series with 2-core Arm Cortex-A55 & M33
  • In-SoC Arm Ethos-U65 microNPU
  • OSM revision 1.1 compliant
  • Up to 2GB LPDDR4L, up to 128GB eMMC
  • LVDS, DSI graphic output

OSM-IMX8MP Key Features

  • OSM revision 1.1 compliant
  • NXP® i.MX8M Plus series with 4-core Arm Cortex-A53 & M7
  • In-SoC 2.3 TOPS NPU
  • HDMI, LVDS, DSI graphic output interfaces
  • Dual GbE (one TSN capable)
  • I²S / Dual CAN bus / USB3.0, 2.0 interfaces
Documents Tech question

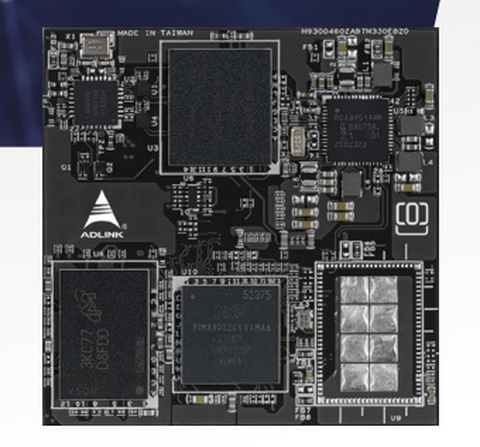

Schermafbeelding 2024 09 20 133451
