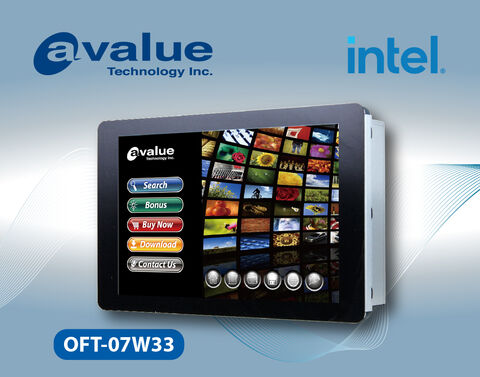

Open Frame Multi-Touch Panel PC OFT-07W33

03/09/2021

Avalue added a 7-inch embedded multi-touch tablet OFT-07W33 to its best-selling open-frame OFT series, which allows for more flexibility and customization in applications, and enables a wide range of usage scenarios. Building on its legacy of open frame architecture for easy installation and maintenance, and highly flexible design, the OFT-07W33 is a boost to the existing range of applications with usage expanding from gaming machine, digital signage, factory automation, interactive multimedia kiosk and HMI to medical analyzers.

The OFT-07W33 uses Intel® Celeron® processor N3350/J3455 (Apollo Lake), and is compatible with Windows, Linux and Android operating systems. It has a memory capacity of 4GB DDR3L which can be expanded up to 8GB DDR3L 1866MHz, and provides a diverse range of I/O interfaces, including 2 x GbE LAN, 1 x RS232 and 4 x USB3.1, providing high scalability according to user’s requirements. Furthermore, the OFT-07W33 supports multi-touch and glove touch capability, and is operable under the sun. Not only does it satisfies a wide range of customization requirements but is also suitable for high-end embedded industrial applications due to its outstanding computing power.

Main Features

  • 7” HD Open frame PCAP Touch panel PC
  • Various mounting kits compliance with OFT series
  • Onboard Intel® Pentium®/Celeron®/Atom™ BGA Processor N3350/J3455
  • Default with 4GB DDR3L memory, Max. Up to 8GB DDR3L 1866MHz
  • 7” HD Multi Touch Screen Design
  • 1 x HDMI
  • 2x GbE LAN, 4 x USB 3.1 (Gen1 5Gbps), 1 x RS232(DB9 COM port)
  • 1 x RS232 (JCOM2 by header, RS232/RS422/485 by jumper), 1 x 8bit GPIO
  • Wi-Fi & BT(option)
Documents Tech question
Avalue OFT 07 W33 OFT 07 W33 PR Avalue OFT 07 W33 Banner

Open Frame Multi-Touch Panel PC OFT-07W33

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 16 Kiosk POS Digital Signage

    Kiosk, POS & Digital Signage

  • 20 Entertainment Gaming

    Entertainment & Gaming

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Touchscreen

    Touchscreen technologies

  • Shutterstock 1901551972

    Panel PCs & HMI

Avalue

Avalue Technology is a professional industrial computer manufacturing company, who is dedicated to developing the x86 and RISC architecture products.

Read more
Avalue Logo

Documents

  • Avalue OFT 07 W33 Datasheet
