New Ultra-compact 30W AC/DC Power Modules for space critical applications

15/10/2021

The MINMAX AMF-30 series is a new generation of fully encapsulated AC-DC power supply modules with ultra-compact size for higher power density and space saving.

The product features universal AC input 85-264VAC and wider DC input 90-370VDC, regulated output voltages 5.1,12,15,24,48VDC ; I/O Isolation 3000VAC with Reinforced Insulation ; EMI emission EN55014-1/32 Class B and EMS immunity EN 61000-4 standards approved ; no min. load requirement and low no-load power consumption; abnormal protection mechanism with output overload, short circuit and overvoltage protections.

The AMF-30 series equips with PCB, Chassis and DIN-Rail Mounting Version for flexible installation and comply with UL/IEC/EN 62368-1 & IEC/EN 60335-1 for safety usage. It provides a cost effective solution especially for space critical applications in industrial and household electronic equipment.

Main Features

  • Ultra Compact Size 2.52x1.77x0.94"
  • Fully Encapsulated Plastic Case for PCB, Chassis and DIN-Rail Mounting Version
  • Universal Input 85-264VAC, 90-370VDC, 47-440Hz
  • I/O Isolation 3000VAC with Reinforced Insulation
  • No Min. Load Requirement & Low no-load power consumption
  • Operating Ambient Temp. Range -40℃ to +70℃
  • Overload/Voltage and Short Circuit Protection
  • EMI Emission EN55014-1/55032 Class B Approved
  • EMS Immunity EN61000-4-2,3,4,5,6,8,11 Approved
  • Safety Approval to UL/cUL/IEC/EN 62368-1, IEC/EN 60335-1 & CE Marking
Documents Tech question

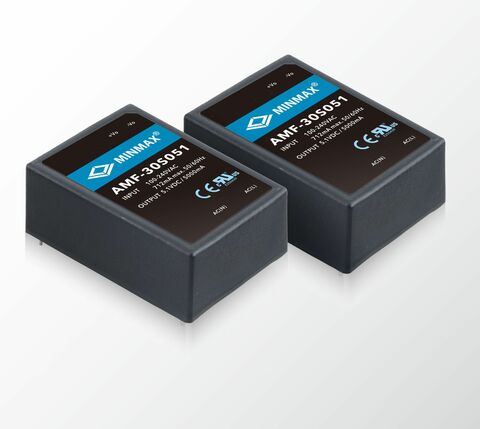

Minmax AMF 30 series

New Ultra-compact 30W AC/DC Power Modules for space critical applications

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 27 White Goods Home Appliances

    White Goods & Home Appliances

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Shutterstock 1026772606

    AC/DC power supplies

MinMax

Minmax is a specialist in the design and manufacturing of DC-DC converters & AC-DC power supplies for ITE, Railway, Renewable energy and medical applications.

Read more
Minmax Logo

Documents

  • Minmax AMF 30 Datasheet
