New Relio R1 Rugged Industrial Computer

22/12/2023

Newest additions to the industry-leading Relio embedded computer line. With the latest generation of industrial processors available, and a modernized video interface, these Relio R1 Rugged computers offer versatile communication with I/O for RS-232, RS-485, CAN, Wi-Fi, and Ethernet.

The new Relio R1 Rugged Industrial Computers have extremely rugged, anodized aluminum enclosures combined with intentional thermal management for unmitigated performance under environmental extremes. The fanless, solid-state designs, combined with locking SeaLATCH USB connectors, ensure shock and vibration tolerance as well as long-term reliability. The systems achieve up to a -40°C to 71°C wide operating temperature range and outperform military standards for shock and vibration.

Main Features

Relio R1 Rugged Industrial Computers:

  • Base Model Numbers & CPUs
  • R142-Config: Intel® Atom ™ x6414RE
  • R143-Config: Intel® Atom ™ x6425RE
  • R154-Config: Intel® Core ™ i5-1145GRE
  • R173-Config: Intel® Core ™ i7-1185GRE
  • Gigabit Ethernet Ports
  • High-Retention, SeaLATCH Locking USB 3.0 Ports
  • High-Retention, SeaLATCH Locking USB 2.0 Ports
  • 3-Wire Software Selectable RS-232/RS-485 Ports
  • DVI-D Connector
  • DisplayPort Connector
  • Up to -40°C to 71°C Wide Operating Temperature Range
  • FCC Certified, CE Certified, and UL Listed
Documents Tech question

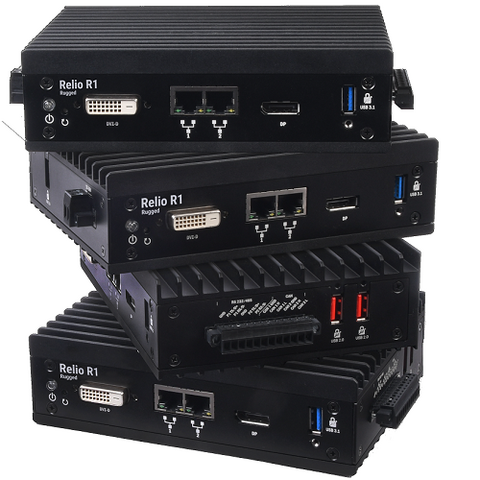

Sealevel Relio R1 computers

New Relio R1 Rugged Industrial Computer

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 18 Traffic Transportation

    Traffic & Transportation

  • 14 Aerospace Mil

    Aerospace & Mil

  • Shutterstock 1090175828

    Marine

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Shutterstock 740406568

    Industrial PC & systems

Sealevel

Sealevel reinvented the I/O and industrial computing industry with the first RS-422/485 communication adapter for the IBM PC. Since 1986, Sealevel has continued to redefine design, engineering and manufacturing for industrial computers, Ethernet serial servers, USB serial, PCI Express and PCI bus cards, and IoT hardware and software. All products are world class, American made.

Read more
Sealevel systems vector logo

Documents

  • Sealevel Relio R1 Industrial computer Datasheet
