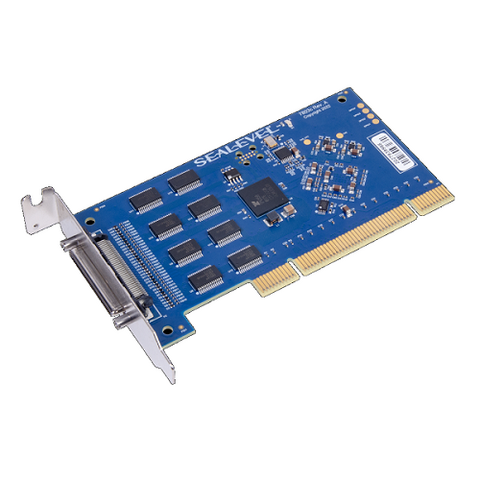

New PCI Board with Advanced Architecture

19/01/2024

The new 7803c low profile PCI Serial Interface with eight RS-232 ports enables a wide range of non-standard baud rates through an advanced architecture with eight independent, enhanced 16550 compatible UARTs that provide 256-byte Tx/Rx FIFOs.

With support for RS-232 data rates up to 230.4 Kbps, the 7803c Low Profile PCI Serial Interface is intentionally designed for data-intensive applications including automation, control, test and measurement, and point-of-sale. All RS-232 modem control signals are implemented for maximum compatibility with a wide range of serial peripherals. For deployments in extreme environments, the 7803c features a wide operating temperature range of 0°C to 70°C. Sealevel’s SeaCOM software is included for easy installation and operation.

Main Features

  • (8) RS-232 serial ports
  • Enhanced 16550 compatible UARTs with 256-byte FIFOs
  • Supports RS-232 data rates to 230.4 Kbps
  • All modem control signals implemented
  • 0°C to 70°C operating temperature range
Documents Tech question
Sealevel 7803c

New PCI Board with Advanced Architecture

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 17 Home Building Automation

    Home & Building Automation

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 8 Instrumentation

    T&M and instrumentation

  • 16 Kiosk POS Digital Signage

    Kiosk, POS & Digital Signage

Technologies

  • Shutterstock 1163832229

    GPU and Edge computing

Sealevel

Sealevel reinvented the I/O and industrial computing industry with the first RS-422/485 communication adapter for the IBM PC. Since 1986, Sealevel has continued to redefine design, engineering and manufacturing for industrial computers, Ethernet serial servers, USB serial, PCI Express and PCI bus cards, and IoT hardware and software. All products are world class, American made.

Read more
Sealevel systems vector logo

Documents

  • Sealevel 7803c Datasheet
