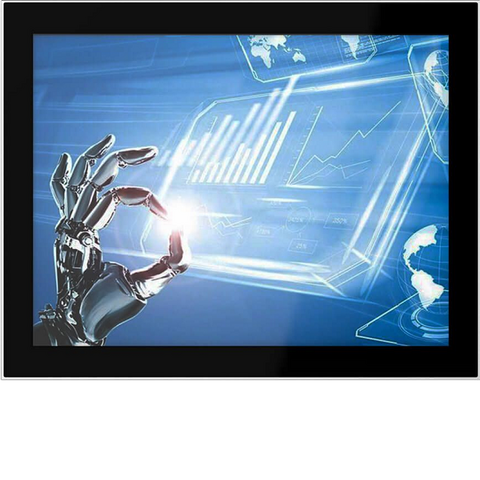

New Modular Touch Panel PCs with Intel Elkhart Lake J6412 processor

11/11/2022

The TPC-DCS/DRS E1 is a new modular fanless industrial Panel PCs series. It is modular designed and manufactured by the standard Pcap. And Resistive touch display modules and computer modules. The product is equipped with Intel's new Elkhart Lake J6412 quad-core 2.0G high-performance CPU platform. The TPC-DCS/DRS E1 support full inventory from 10.4”to 21.5”, totally 8 dimensions; Support both Pcap. Touchscreen and Resistive touchscreen under same cut-out dimensions.

The TPC-DCS/DRS E1 Panel PC products support TPM2.0 (PTT2.0) and Windows 11 Operating systems. It is suitable for various of industrial projects, including Machine-to-Machine (M2M), smart building automation, industrial automation, Industrial Internet of Things (IIoT), smart manufacturing, industry 4.0, commercial automation.

Main Features

  • High strength aluminum alloy, anodized and painting treatment
  • Available 10.4”,12.1”,15.0”,15.6”,17.0”,18.5”,19.0”and 21.5”
  • On-board Intel Elkhart Lake J6412 Quad-core processor
  • Intel PTT TPM2.0, support to install Win11 OS
  • Support both Pcap. Touch and resistive touch, EETI touch controller
  • 1* DDR4 memory, single slot, max. up to 32GB
  • 1* M.2 2280(NGFF) Key-M slot (PCIe x2 NVME) and 1* 2.5” SATA SSD
  • DC 12V input, optional wide voltage DC 9~36V input
  • 2 GLAN, dual wireless expansion 4G/5G, WIFI/BT support
  • 3 USB3.0, 3 USB2.0, 2 COM, 2 HDMI, Audio
  • Support Panel mount, and VESA 75/100 mount method
  • Industrial -20 ~ + 70℃ operating range, optional -40~+80 ℃
Documents Tech question
Taicenn TPC DCS150 A1

New Modular Touch Panel PCs with Intel Elkhart Lake J6412 processor

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 17 Home Building Automation

    Home & Building Automation

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Shutterstock 1901551972

    Panel PCs & HMI

  • Shutterstock 740406568

    Industrial PC & systems

Taicenn

TAICENN, founded in Shenzhen, is a leading global provider and manufacturer of industrial panel PC, industrial display and industrial& embedded PC products, which are designed specifically for systems and applications that require excellent performance, high-level reliability and stability, long supply period and support.

Read more
Taicenn logo

Documents

  • Taicenn TPCDCS150 A Datasheet
