New Modular Industrial Panel PCs with Intel 11th Gen. Tiger Lake UP3 processors

03/02/2023

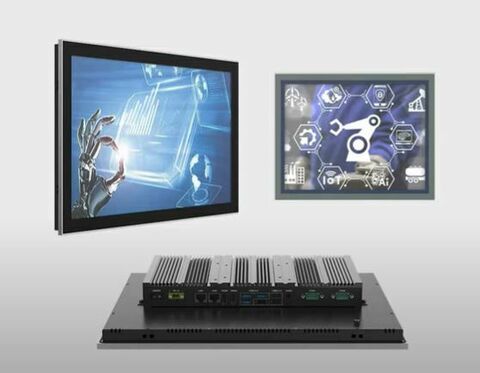

The TPC-DCS/DRS T panel PC series is a ruggedized, fan-less design with full dimensions (from 15.0” to 21.5”) that’s crystal clear for both still imaging and streaming video. As always, this new series HMI Panel PCs shares the same cut-out dimension on both Pcap. touch (TPC-DCS T) and high temp. 5-wires resistive touch (TPC-DRS T). It is modular designed and manufactured by the standard Pcap. and resistive touch display modules and computer modules.

The newest released Tiger Lake Panel PC system is powered by Intel’s 11th Gen. Intel Tiger Lake UP3 SoC super high computing platform (Celeron 6305E, Core i3-1115G4, Core i5-1135G7, Core i7-1165G7) processors to provide an accelerated computing performance. The integrated Intel Iris Xe Graphics built with innovative GPU architecture are able to optimize image and video handling capabilities.

Main Features

  • High strength aluminum alloy, anodized and painting treatment
  • Available: 15.0”XGA, 15.6”WXGA, 15.6”FHD, 17.0”SXGA, 18.5”WXGA, 18.5”FHD, 19.0”SXGA and 21.5”FHD
  • On-board Intel 11th Gen. Tiger Lake UP3 Celeron 6305E, Core i3-1115G4, Core i5-1135G7, Core i7-1165G7 processors
  • Intel PTT TPM2.0, support to install Win11 OS
  • Support both Pcap. Touch and 5-wires resistive touch, EETI controller
  • 1* DDR4 memory, single slot, max. up to 32GB
  • 1* M.2 2280(PCIe NVMe) SSD, and 1* 2.5” SATA SSD
  • DC 12V input, optional wide voltage DC 9~36V input
  • 2 M.2 Key slots, dual wireless expansion 3G/4G, 5G, WIFI/BT support
  • 2 GLAN, 6 USB3.0, 2 COM, 2 HDMI, Audio
  • Panel mount, support VESA 75/100 mounting method
  • Fanless design, slim design, front IP65 rated protection
Documents Tech question
Taicenn TPC DCS DRS series

New Modular Industrial Panel PCs with Intel 11th Gen. Tiger Lake UP3 processors

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Shutterstock 740406568

    Industrial PC & systems

Taicenn

TAICENN, founded in Shenzhen, is a leading global provider and manufacturer of industrial panel PC, industrial display and industrial& embedded PC products, which are designed specifically for systems and applications that require excellent performance, high-level reliability and stability, long supply period and support.

Read more
Taicenn logo

Documents

  • Taicenn TPCDCS150 T Datasheet
